Installing Tie-Rod Ball
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
Clean the thread of the tie-rod ball before screwing the tie-rod ball onto the tie rod.
To prevent any damage when screwing the tie-rod ball onto the tie rod, make sure in particular that the thread engages uniformly.
Screw on the tie-rod ball by the number of turns you wrote down during removal. Then turn it as far as the marking.
This is not a substitute for a later suspension alignment, but merely avoids the need for an approximate adjustment of the steering trapeze.
- Installation is performed in reverse order to removal. Pay particular attention to the following:

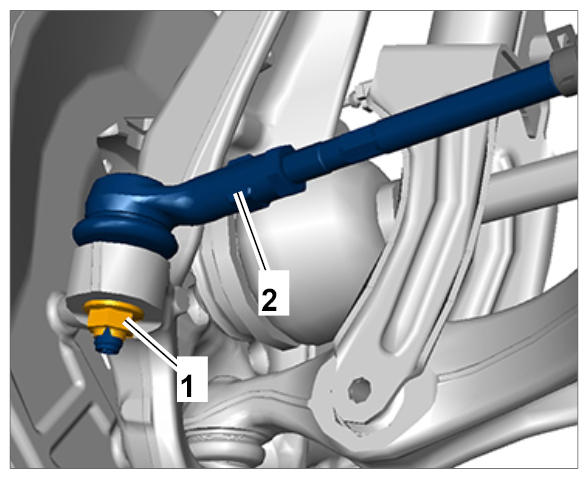

Fastening nut -1- securing tie-rod ball to wheel bearing housing: Tightening torque 90 Nm (67 ftlb.)
Always use a new nut following removal.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

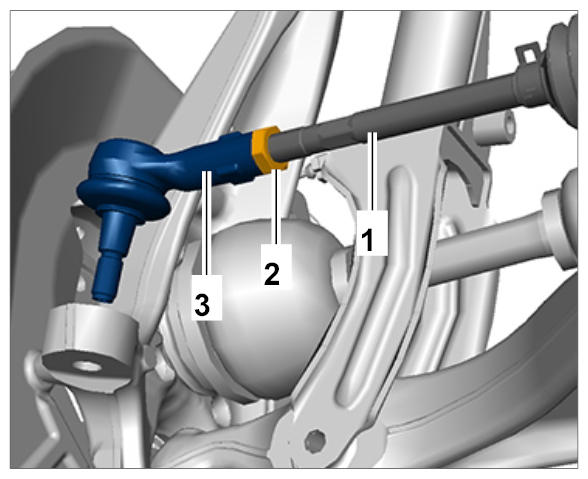

Lock nut -2- securing tie-rod ball -3- to tie rod -1- : Tightening torque 90 Nm (67 ftlb.)
