Overview Of Steering Column - Sealing Bellows

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

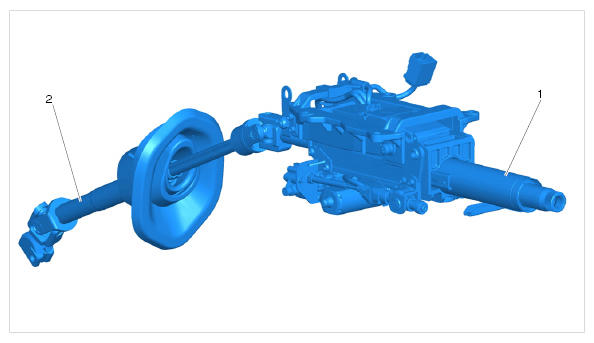

Fig 1: Identifying Steering Column (Upper And Lower Part)
G09937719Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Upper part of steering column
  2. Lower part of steering column
  1. Remove the steering column completely and carefully clamp it in a vice.

    Information

    • Always use additional aluminum clamping jaws for clamping the steering column in the vice.
    1. 1.1. Electrically adjustable steering column:  Make sure that the steering column is clamped securely at one of the four fastening positions -1-  on the steering column.

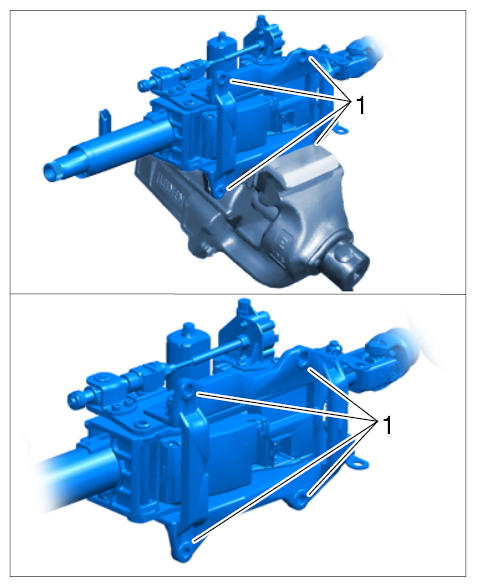

      Fig 2: Identifying Positions For Clamping Electrically Adjustable Steering Column
      G09937720Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Mechanically adjustable steering column:  Make sure that the steering column is clamped securely at one of the four fastening positions -1-  on the steering column. Important:  Before clamping the steering column, position a spacer in the cut-out on the reinforced side -arrows-  to prevent the steering column from bending or being damaged irreparably.

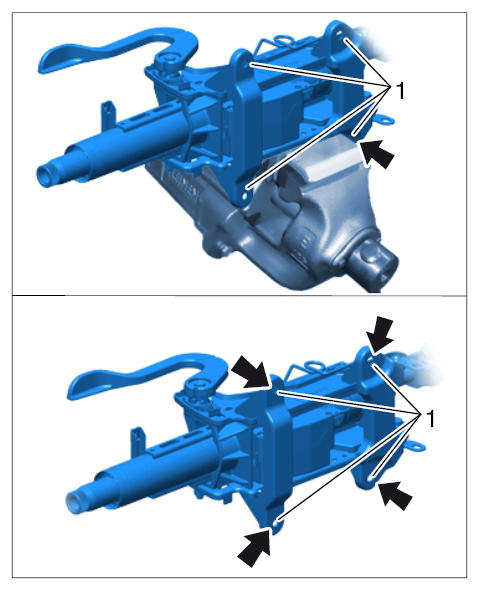

      Fig 3: Identifying Positions For Clamping Mechanically Adjustable Steering Column
      G09937721Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Both parts of the intermediate steering shaft must be marked for assembly -color markings-  . This ensures that both sections will not be installed in an offset position.

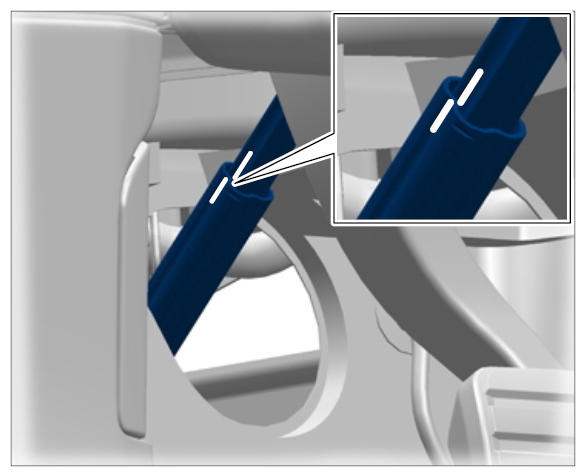

    Fig 4: Identifying Markings On Intermediate Steering Shaft
    G09937722Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Disconnect the steering column at the intermediate steering shaft. The lower steering shaft can be pulled from the upper steering shaft with a quick strong jerk at the pressure point.
  4. Remove the sealing bellows on the steering column.
