Installing Sealing Bellows Of The Steering Column

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only replace complete steering columns. Individual components cannot be disassembled and replaced.
Visually inspect all parts.
Make sure that everything remains absolutely clean.
Use the prescribed lubricant on the sliding part .
Fit together both parts of the steering column that were previously marked with -color markings- .

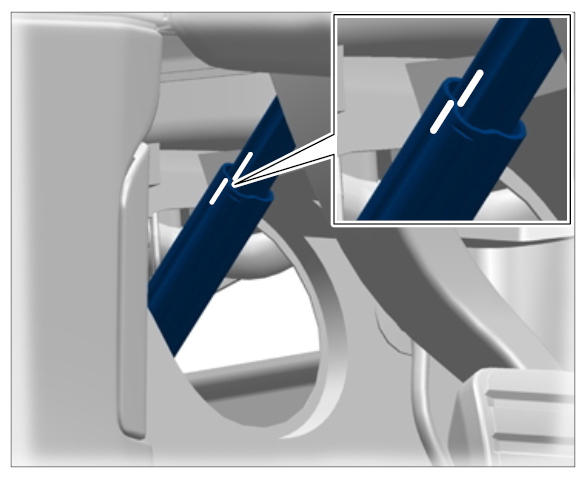

Fig 1: Identifying Mark On Steering Column
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The lower steering shaft must slide on the upper steering shaft smoothly and without catching.

Fit sealing bellows on the steering column at the correct position.
Slide the lower steering shaft onto the upper steering shaft. Overcome the pressure point with a strong jerk.
