Removing Bellows For Steering-Gear Housing (Joint Boot)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Mark the position of the tie-rod ball on the thread before unscrewing it.
Count the number of turns when unscrewing the tie-rod ball.
It will then be possible to install the tie-rod ball back in the same position and retain the basic setting of the steering trapeze.
However, this does not replace the suspension alignment.

Information

Make sure that no dirt gets into the power-steering gear and bellows when removing and installing the bellows.

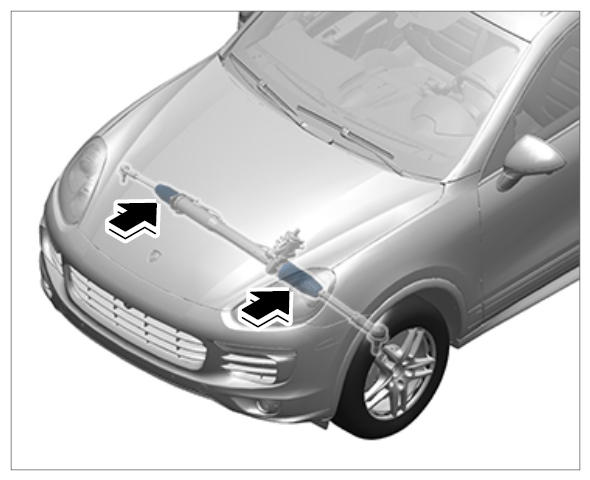

Fig 1: Identifying Steering-Gear Housing Bellows Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew lock nut from tie rod.
Right tie rod:
Remove fastening screws -1- on the heat shield -2- near the bellows -3- for the right tie rod.

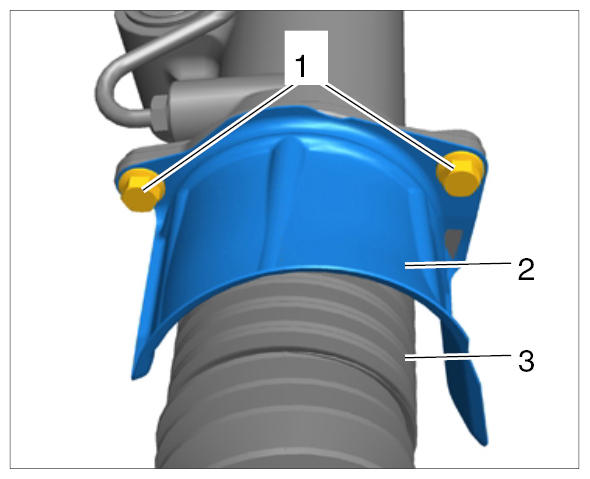

Fig 2: Identifying Fastening Screws On Heat Shield For Right Tie Rod
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out heat shield -2- .
Loosen the outer clamp -arrow- on the bellows using assembly tools for spring band clamps Nr.72 .

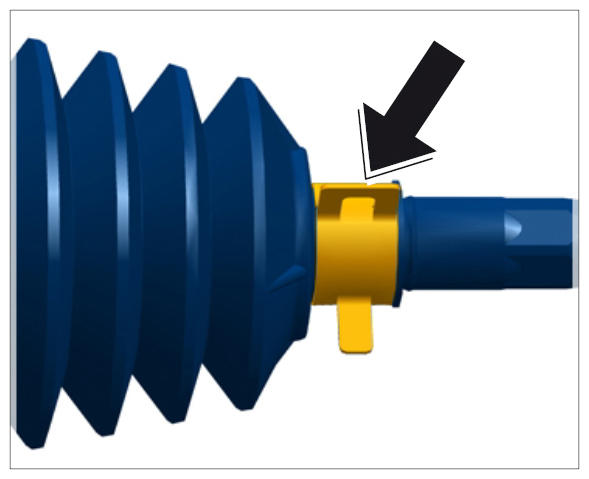

Fig 3: Locating Outer Clamp On Bellows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen the inner clamp -1- on the bellows using suitable pliers.

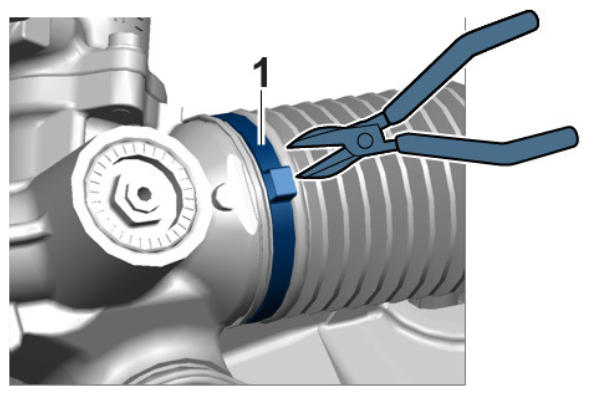

Fig 4: Loosening Inner Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull bellows -3- together with clamp -1- off the tie rod -2- .

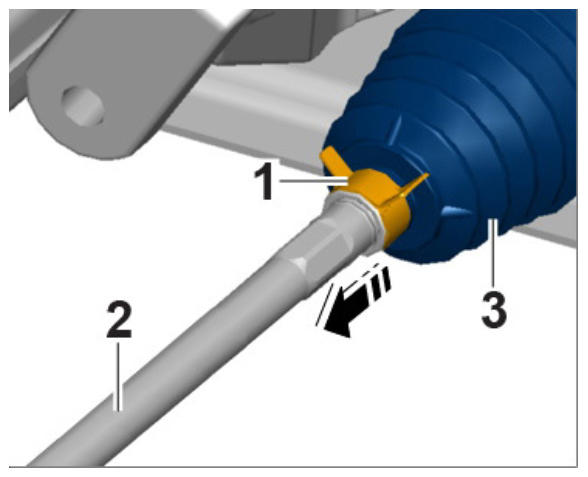

Fig 5: Pulling Off Bellows With Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
