Removing Control Unit For Height Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Unlock and disconnect electric plug connection -a- .

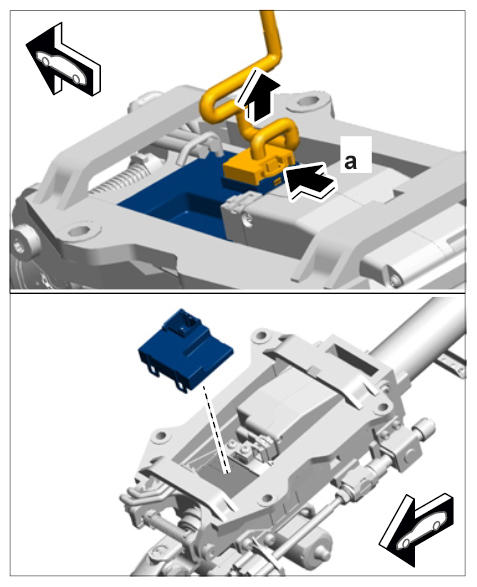

Fig 1: Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew and remove fastening screw.
Lift height adjustment control unit and pull it out of the steering column.
