Installing Control Unit For Height Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place height adjustment control unit in steering column.
  2. Secure height adjustment control unit using the fastening screw. → Tightening torque: 3.6 Nm (2.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)

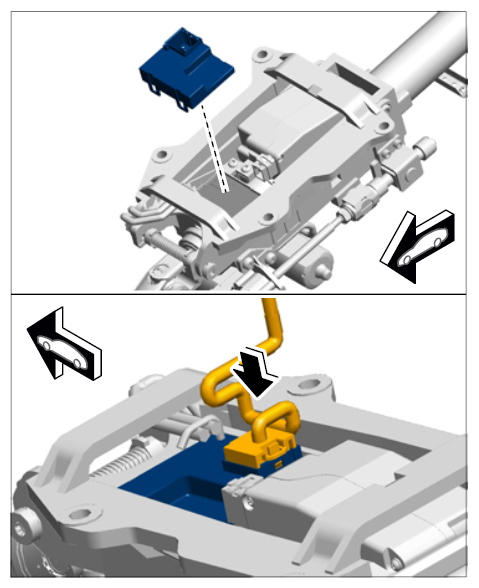

    Fig 1: Installing Control Unit For Height Adjustment
    G09937702Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Plug in electric connector at the control unit until it engages securely.
