Installing Switch For Height And Fore-And-Aft Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

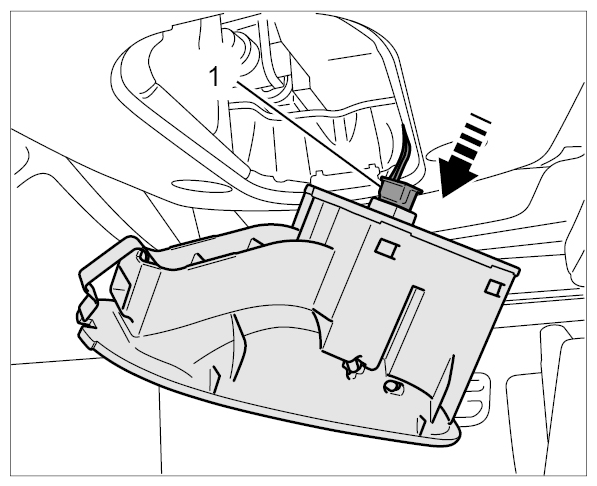

Plug in electric plug connection -1- .

Fig 1: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert switch -2- at the bottom first.
Press the switch -2- into the trim panel until the clip -1- engages securely.

Fig 2: Pressing In Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
