Overview Of Steering Column

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

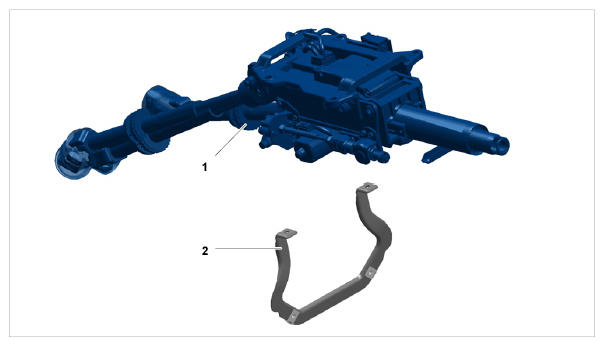

Fig 1: Overview Of Steering Column
G09937695Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Steering column
  2. Retaining bracket for lower part of dashboard
