Removing Steering Column Casing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust steering wheel to lower position.
  2. Unclip upper part of casing.

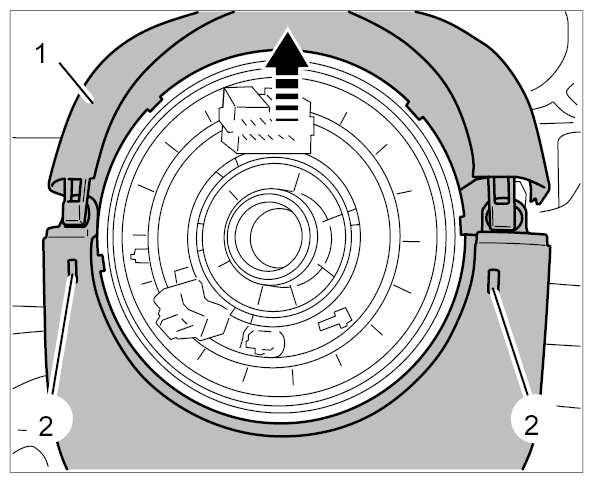

    Fig 1: Removing Upper Part
    G09937670Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Turn steering wheel in such a way that the openings on the front are accessible.
    2. 2.2. Unclip upper part of casing -1-  through the openings on the front -2-  using a suitable screwdriver.
  3. Fold upper part of steering column casing -1-  up and unclip the clips on the dust boot -2-  .

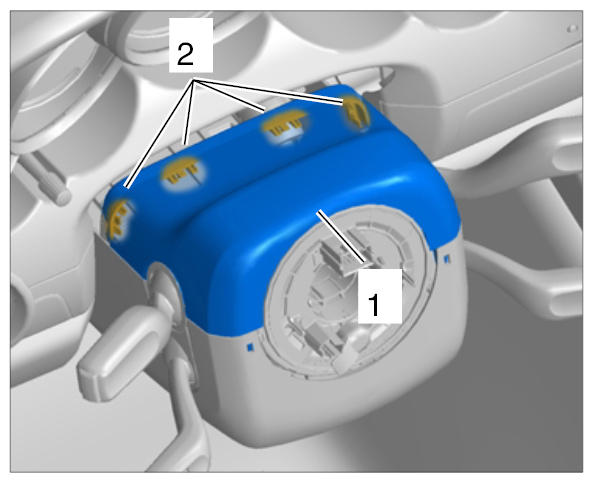

    Fig 2: Removing Dust Boot
    G09937671Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove upper part of steering column casing -1-  .
  5. Release lower part of casing.

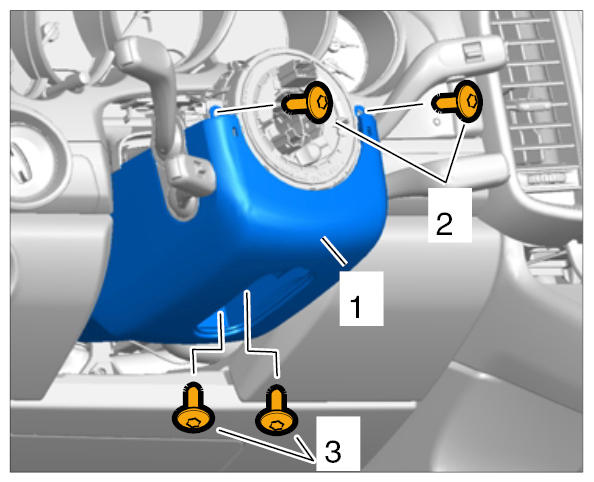

    Fig 3: Identifying Steering Column Lower Part Screws
    G09937672Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 5.1. Unscrew fastening screws -3-  on lower part of casing -1-  . (For electric steering-wheel adjustment only)  .
    2. 5.2. Turn the steering wheel in such a way that the fastening screws -2-  on the front are accessible.
    3. 5.3. Unscrew fastening screws -2-  on lower part of casing -1-  .
  6. Release and pull off plug connection. (For electric steering-wheel adjustment only)  .
  7. Remove lower part of steering column casing -1-  .
