Disassembling Steering Wheel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

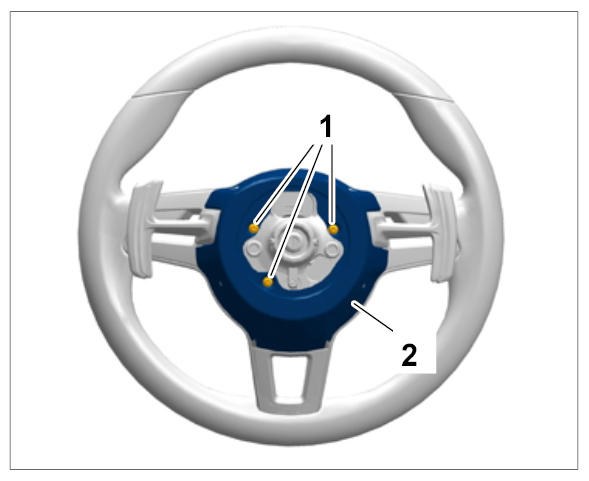

Unscrew fastening screws -1- on the back cover -2- .

Fig 1: Identifying Mounting Screws On Back Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

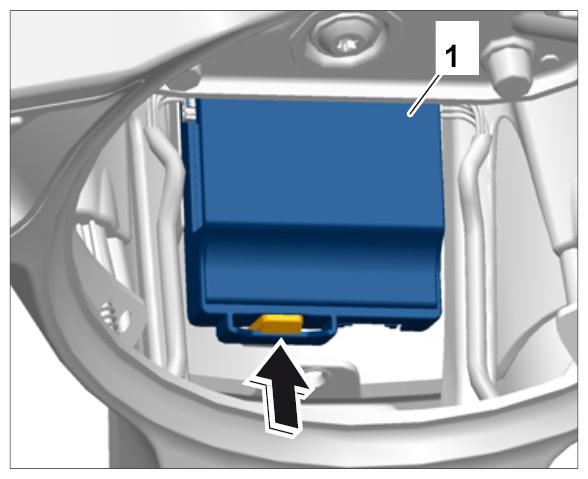

Release control unit -1- at position -arrow- and pull it forward slightly.

Fig 2: Pulling Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

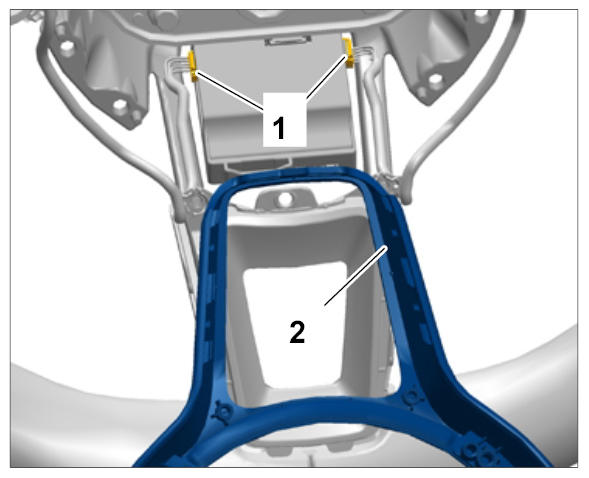

Remove back cover -2- .

Fig 3: Identifying Back Cover With Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

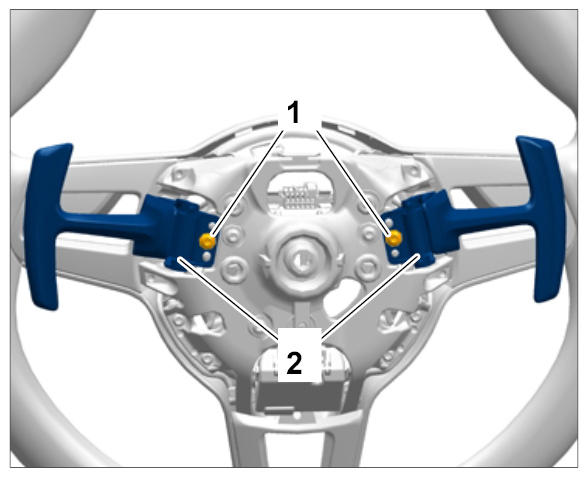

Unscrew fastening screws -1- for the paddles -2- .

Fig 4: Identifying Paddles Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

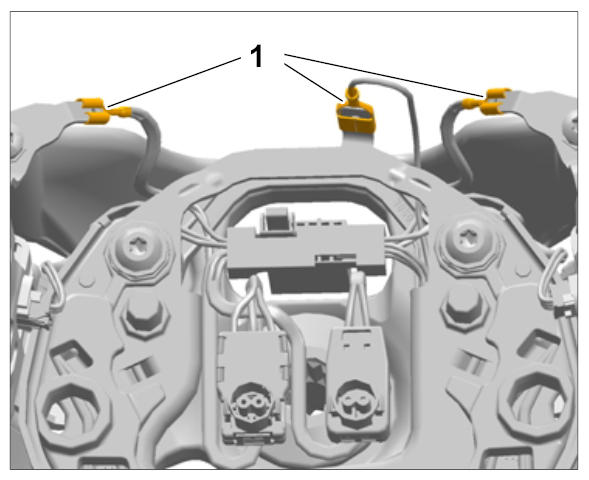

Release and disconnect electric plug connection -1- for the paddles.

Fig 5: Identifying Electric Plug Connection For Paddles
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

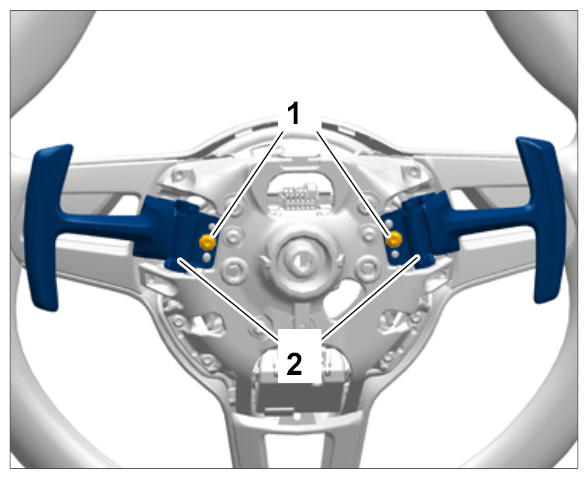

Lift paddles -2- up and off.

Fig 6: Identifying Paddles Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

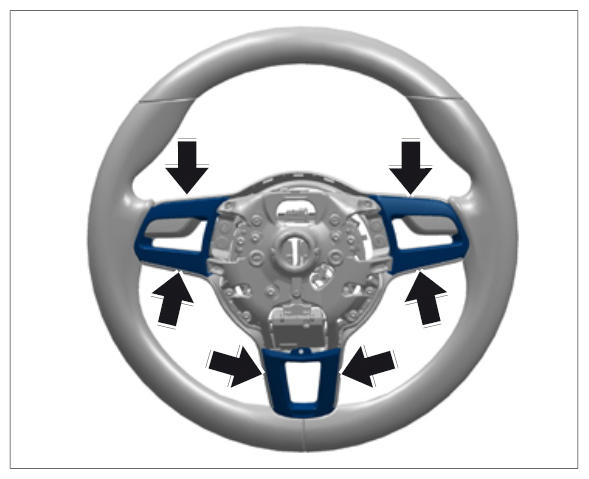

Unclip rear trims at positions -arrows- using a suitable thin tool (e.g. feeler gauge).

Fig 7: Removing Rear Trims
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

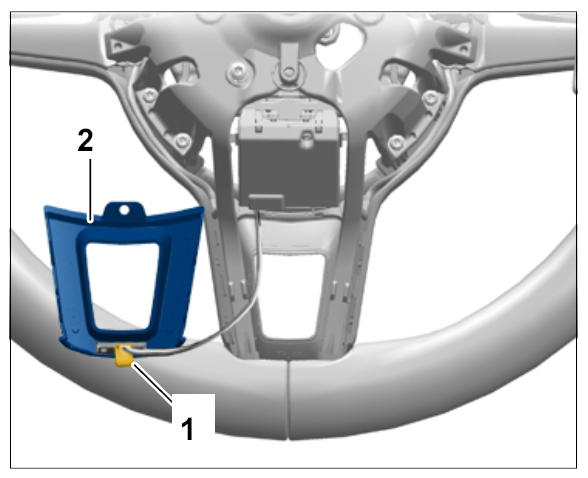

Only for heated steering wheel: Release electric plug connection -1- from the rear trim at the 6 o'clock position -2- and disconnect it.

Fig 8: Identifying Heated Steering Wheel Switch Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- on the main cover.

Fig 9: Identifying Fastening Screws On Main Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift main cover -1- straight up.

Fig 10: Identifying Main Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and disconnect electric plug connections -1- and remove main cover -2- .

Fig 11: Identifying Multi-Functional Switch On Control Unit And Electrical Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

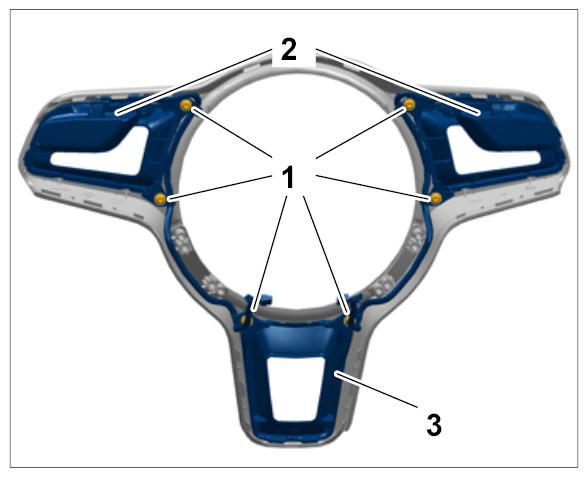

Unscrew fastening screws -1- for the multi-functional switch -2- and front trim -3- .
Remove multi-functional switch -2- with cables and front trim -3- .

Fig 12: Identifying Multi-Functional Switch And Front Trim Screws On Main Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect connector -1- from connector lugs.

Fig 13: Identifying Connector Lugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

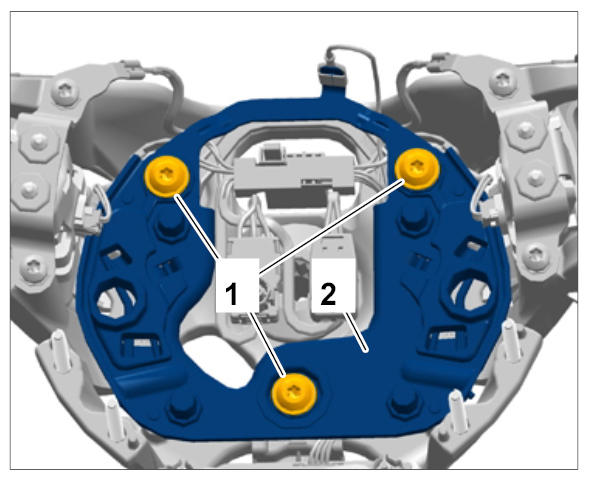

Unscrew fastening screws -1- on the contact bridge -2- and remove contact bridge.

Fig 14: Identifying Contact Bridge Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

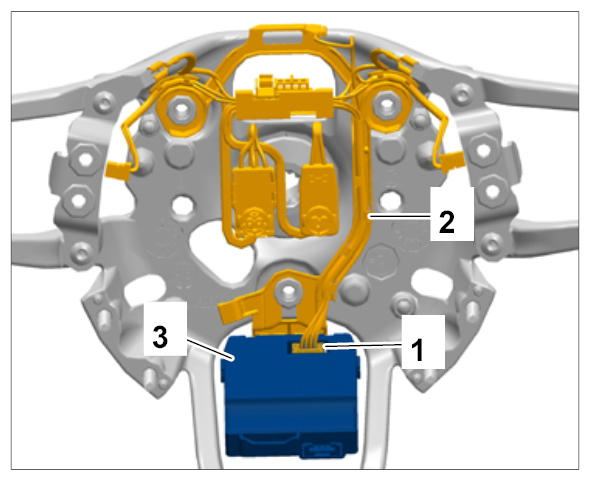

Release electric plug connection -1- for wire harness -2- from the control unit -3- and disconnect it.

Fig 15: Identifying Connector For Wire Harness On Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

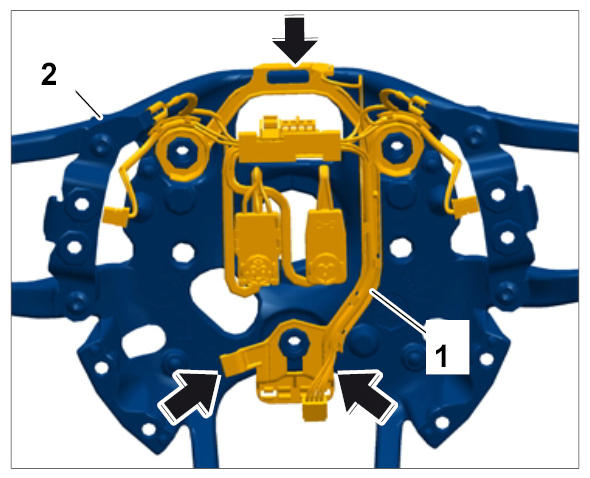

Release wire harness -1- at positions -arrows- from the steering wheel skeleton -2- and remove it.

Fig 16: Identifying Wire Harness On Steering Wheel Skeleton
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
