Assembling Steering Wheel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The steering wheel is assembled in reverse order to disassembly. Pay particular attention to the following:

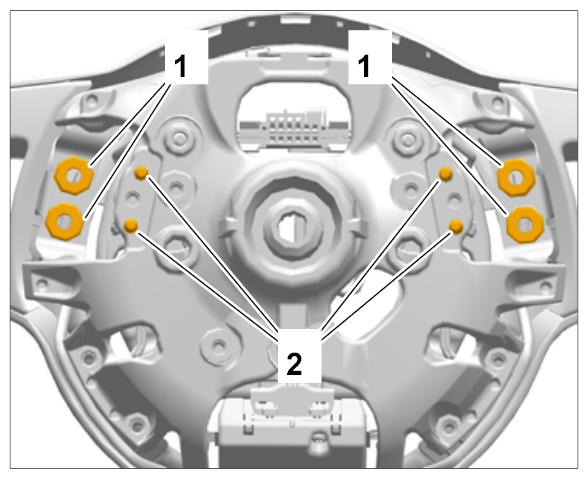

Tighten fastening screws -1- on the contact bridge -2- . Tightening torque 6 Nm (4.5 ftlb.)
Check that the springs are fitted between the contact bridge and steering wheel skeleton and check that they are seated correctly.

Fig 1: Identifying Screws On Contact Bridge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Multi-functional switches can be used immediately after installation. They do not need to be coded.
Fit multi-functional switch -2- with cables and front trim -3- into the main cover.

Fig 2: Identifying Multi-Functional Switch And Front Trim On Main Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

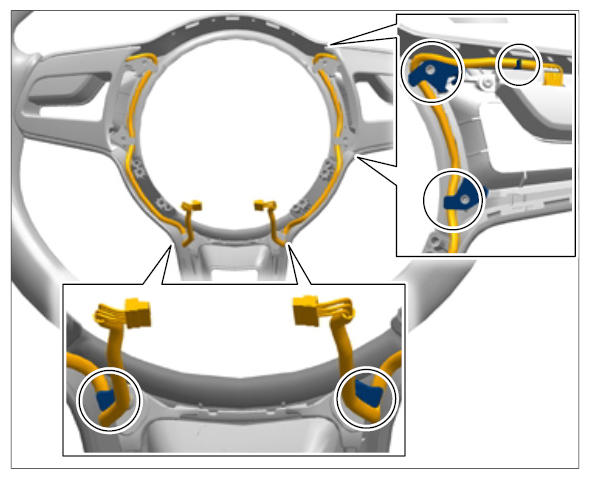

Check cable routing! Route cables under the plastic lugs, see marked positions. → Cable routing for multi-functional switch in main coverFig 3

Fig 3: Identifying Cable Routing For Multi-Functional Switch In Main Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

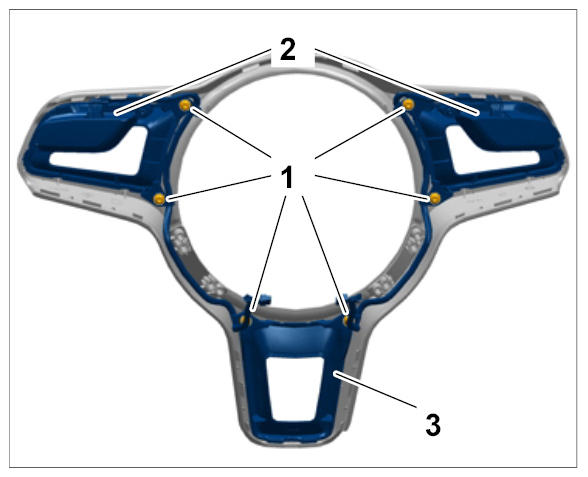

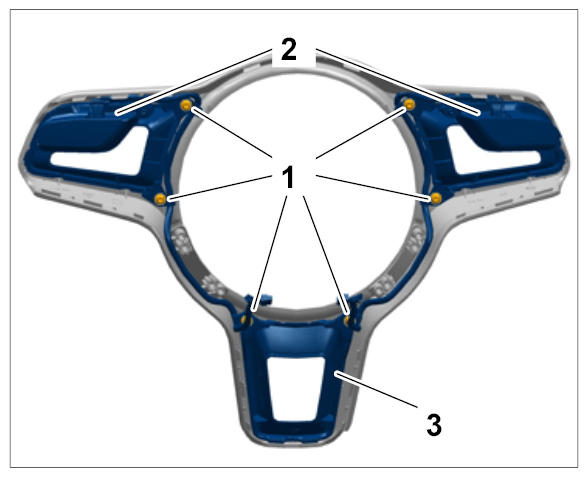

Tighten fastening screws -1- for the multi-functional switch -2- and front trim -3- . Tightening torque 0.45 Nm (0.25 ftlb.)

Fig 4: Identifying Fastening Screws On Multi-Functional Switch And Front Trim On Main Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

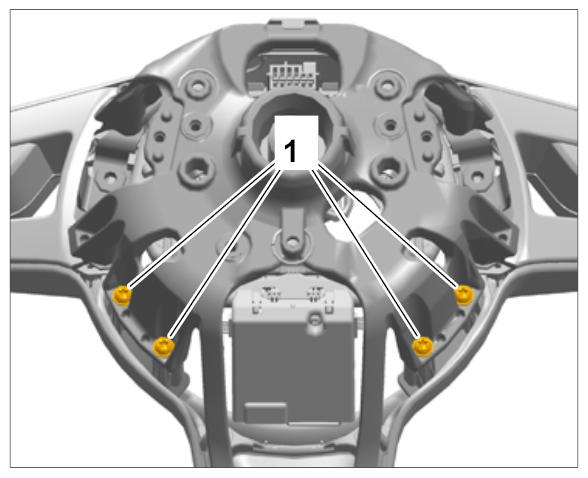

Tighten fastening screws -1- for main cover. Tightening torque 2 Nm (1.5 ftlb.)

Fig 5: Identifying Main Cover With Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert paddles into guides -1- and -2- .

Fig 6: Identifying Guides For Paddles
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

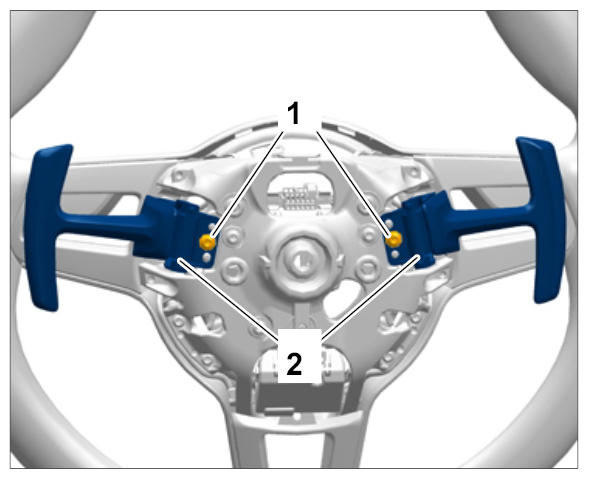

Tighten fastening screws -1- for the paddles -2- . Tightening torque 2.5 Nm (2 ftlb.)

Fig 7: Identifying Fastening Screws For Paddles
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

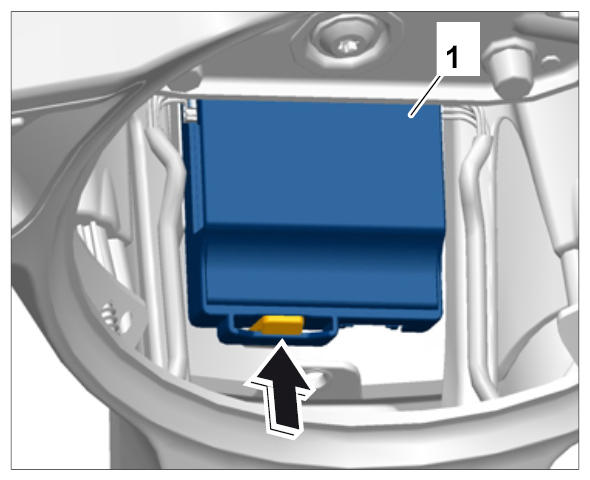

Insert control unit -1- at the rear in the steering wheel and lock it.
Then lock the control unit at the front in the steering wheel at position -arrow- .

Fig 8: Inserting Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

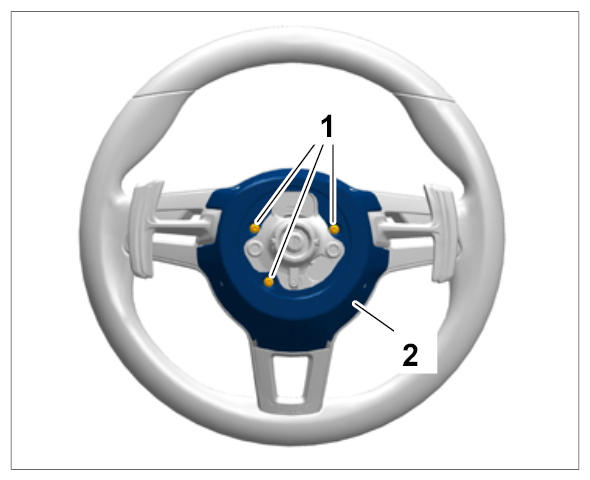

Tighten fastening screws -1- for the back cover -2- . Tightening torque 2.7 Nm (2 ftlb.)

Fig 9: Identifying Back Cover Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
