Installing ELV Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place ELV control unit in steering column.

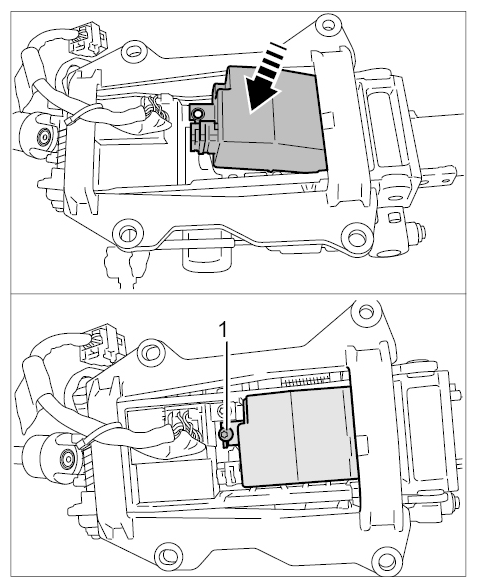

    Fig 1: Installing ELV Control Unit
    G09937624Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure ELV control unit with the fastening screw -1-  . → Tightening torque: 3.6 Nm (2.5 ftlb.)+/-0.5 Nm (+/- 0.5 ftlb.)
