Removing ELV Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Voltage peaks
  • Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

  1. Release and unplug electric plug connection -2-  .
  2. Unscrew fastening screw -1-  .

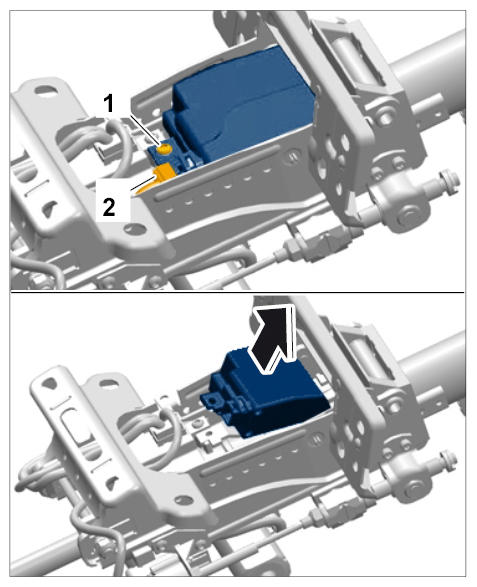

    Fig 1: Removing ELV Control Unit
    G09937620Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Lift the ELV control unit and pull it out of the steering column -arrow-  .
