Steering Wiring 1
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

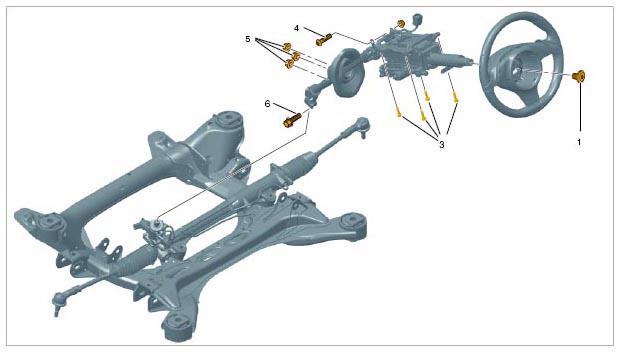

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| No. 1: Threaded connection securing steering wheel to steering column | M18 x 1.5 x 26 thread (only use screw once) | Tightening torque + torque angle | 30 Nm (22 ftlb.) | +90° | |
| No. 3: Threaded connection securing steering column to assembly bracket | M8 x 32 thread; observe tightening sequence! Tighten anti-clockwise from 1 to 4, starting with the rear right fastening screw. | Tightening torque | 20 Nm (15 ftlb.) | ||
| No. 4: Threaded connection securing steering column to frequency strut | M8 x 115 thread; screw frequency strut to mounting bracket after screwing on steering column! | Tightening torque | 20 Nm (15 ftlb.) | ||
| No. 5: Threaded connection securing mount for sealing ring/seal to firewall | Tightening torque | 4 Nm (3 ftlb.) | |||
| No. 6: Threaded connection securing universal joint to steering gear | M8 x 30 thread (only use screw once) | Tightening torque | 20 Nm (15 ftlb.) | +90° |
