Steering 1
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

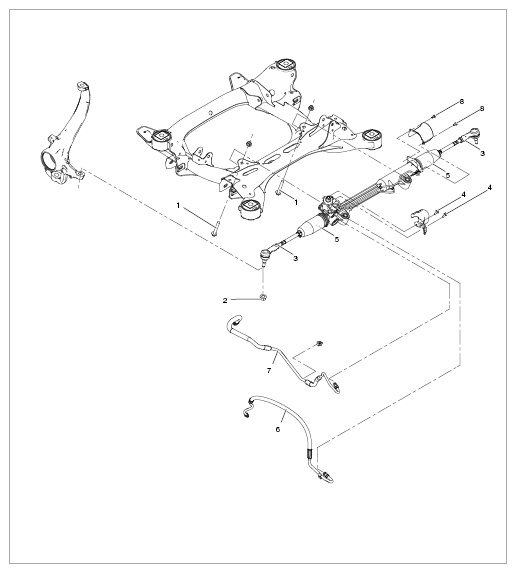

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| No. 1: Threaded connection securing steering gear to suspension subframe | M12 x 1.5 thread (always replace screws and lock nuts after removal) | Tightening torque | 90 Nm (67 ftlb.) | +90° | |
| No. 2: Threaded connection securing tie rod to pivot bearing | M14 x 1.5 thread (always replace screws and lock nuts after removal) | Tightening torque | 90 Nm (67 ftlb.) | ||
| No. 3: Threaded connection securing tie rod to tie-rod end | M16 x 1.5 thread, lock nut | Tightening torque | 90 Nm (67 ftlb.) | ||
| No. 4: Threaded connection for heat shield | M6 x 16 thread | Tightening torque | 9 Nm (6.5 ftlb.) | ||
| No. 5: Threaded connection securing axial joint to steering rack | M18 x 1.5 thread, axial joint | Tightening torque | 100 Nm (74 ftlb.) | +10° | |
| No. 6: Expansion hose to steering gear | a/f 17 thread (a/f = wrench size 17) | Tightening torque | 32 Nm (24 ftlb.) | +/-4 Nm (+/- 3 ftlb.) | |
| No. 7: Return line to steering gear | a/f 17 thread (a/f = wrench size 17) | Tightening torque | 32 Nm (24 ftlb.) | +/-4 Nm (+/- 3 ftlb.) | |
| Expansion/return hose to steering gear | M6 x 12 thread | Tightening torque | 9 Nm (6.5 ftlb.) | ||
| No. 8: Heat shield to steering gear | M6 x 16 thread | Tightening torque | 10 Nm (7.5 ftlb.) |
