Hydraulic Pump V8 4.8 DFI
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

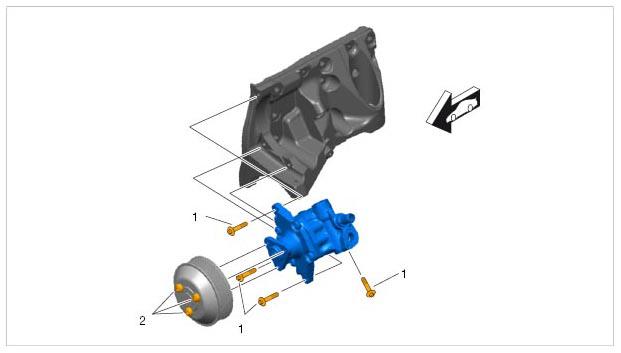

| No. 1: Hydraulic pump to engine (support) | M8 x 35 thread | Tightening torque | 23 Nm (17 ftlb.) | ||
| No. 2: Pulley to hydraulic pump | M8 x 16 thread | Tightening torque | 23 Nm (17 ftlb.) | ||
| Intake pipe to hydraulic pump | M6 x 12 thread | Tightening torque | 10 Nm (7.5 ftlb.) | ||
| Expansion hose to hydraulic pump | Tightening torque | 32 Nm (24 ftlb.) | +/-4 Nm (+/- 3 ftlb.) | ||
| Reservoir | Tightening torque | 10 Nm (7.5 ftlb.) |
