Wheel Carrier
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

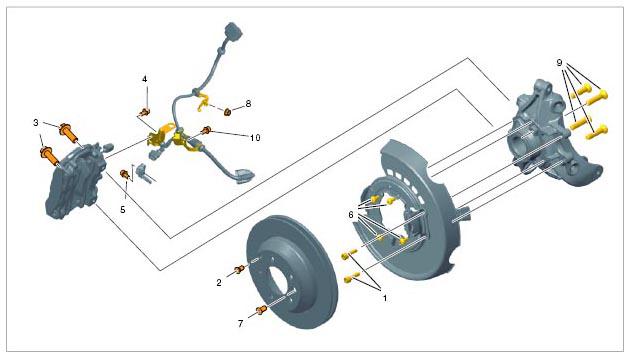

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| No. 1: Threaded connection securing EPB servo motor to wheel carrier | M10 x 1.5 thread | Tightening torque | 20 Nm (15 ftlb.) | +60° | |
| No. 2: Threaded connection securing brake disc to wheel hub | M12 x 1.5 thread | Tightening torque | 15 Nm (11 ftlb.) | ||
| No. 3: Threaded connection securing brake calliper to wheel carrier | M12 x 1.5 x 115 thread (always replace screws and lock nuts after removal) | Tightening torque | 85 Nm (63 ftlb.) | ||
| No. 4: Threaded connection securing brake line holder to brake calliper | M6 x 12 thread | Tightening torque | 8 Nm (6 ftlb.) | ||
| No. 5: Threaded connection securing speed sensor to wheel carrier | M6 x 16 thread | Tightening torque | 8 Nm (6 ftlb.) | ||
| No. 6: Threaded connection securing brake carrier to wheel carrier | M6 x 12 thread | Tightening torque | 8 Nm (6 ftlb.) | ||
| No. 7: Threaded connection for screw plug | M12 x 1.5 thread | Tightening torque | 15 Nm (11 ftlb.) | ||
| No. 8: Threaded connection securing ABS cable holder to front upper control arm | M6 thread | Tightening torque | 10 Nm (7.5 ftlb.) | ||
| No. 9: Wheel bearing to wheel carrier | M12 x 1.25 thread (always replace screws and lock nuts after removal) | Tightening torque | 80 Nm (59 ftlb.) | +120° |
