Spring Strut
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

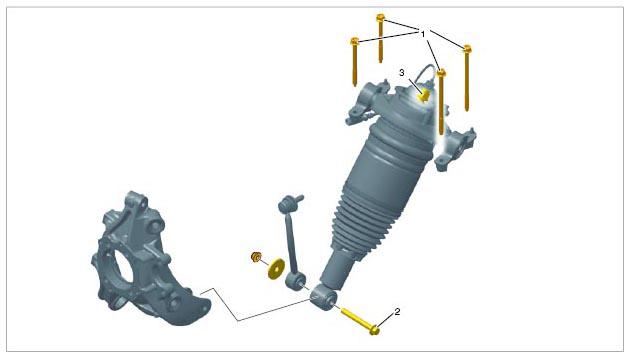

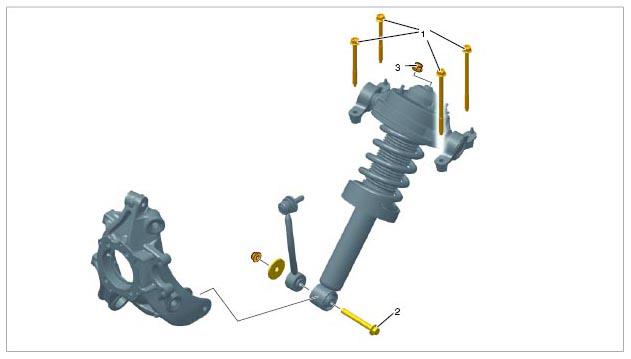

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| No. 1: Threaded connection securing spring strut to damper housing | M10 thread, observe tightening sequence! First tighten the bolts on the inside of the vehicle | Tightening torque | 50 Nm (37 ftlb.) | +180° | |
| No. 2: Threaded connection securing suspension/stabilizer to wheel carrier/shock absorber strut | M12 x 1.5 x 120 thread (always replace screws and lock nuts after removal) | Tightening torque | 90 Nm (67 ftlb.) | +90 angular degrees | |
| No. 3: Supporting mount to piston rod | Tightening torque | 60 Nm (44 ftlb.) | +/-5 Nm (+/- 3.5 ftlb.) | ||
| No. 3: Supporting mount to piston rod (PASM damper) | Tightening torque | 70 Nm (52 ftlb.) | +/-5 Nm (+/- 3.5 ftlb.) | ||
| Cover on concave support | M8 thread | Pressing force | +26 Nm (+19 ftlb.) | +/-1 Nm (+/- 0.5 ftlb.) |
