Drive Shaft
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

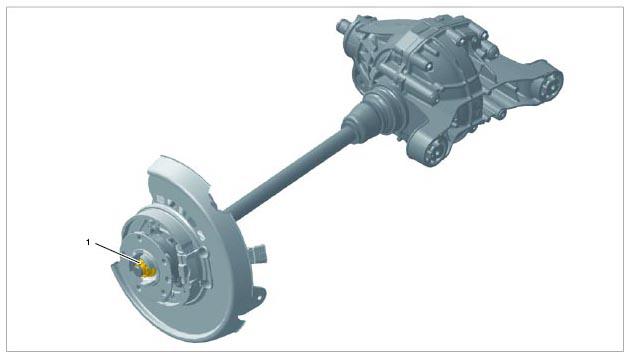

| No. 1: Threaded connection securing drive shaft to wheel hub (1st step) | This is done before installing the wheel bearing housing/M24 x 1.5 thread/always replace lock nut following removal | Tightening torque | 130 Nm (96 ftlb.) | ||
| No. 1: Threaded connection securing drive shaft to wheel hub (2nd step) | This is done with the wheel bearing housing fitted/M24 x 1.5 thread/always replace lock nut following removal | Tightening torque | 460 Nm (340 ftlb.) |
