Chassis Subframe
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

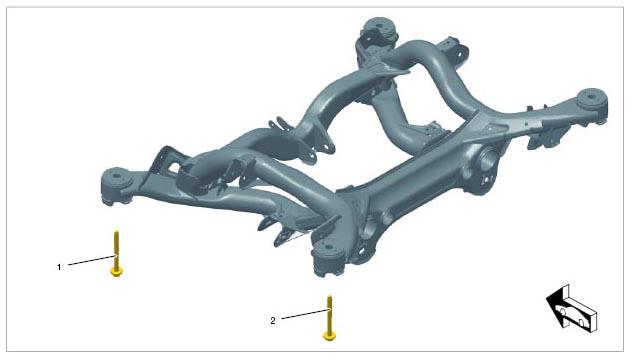

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| No. 1: Threaded connection securing chassis subframe to body (front) | M14 x 1.5 x 150 thread (always replace screws and lock nuts after removal) | Tightening torque | 120 Nm (89 ftlb.) | +180 Angle degrees | |
| No. 2: Threaded connection securing chassis subframe to body (rear) | M14 x 1.5 x 150 thread (always replace screws and lock nuts after removal) | Tightening torque | 120 Nm (89 ftlb.) | +180 Angle degrees |
