Wheel Carrier (Pivot Bearing)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

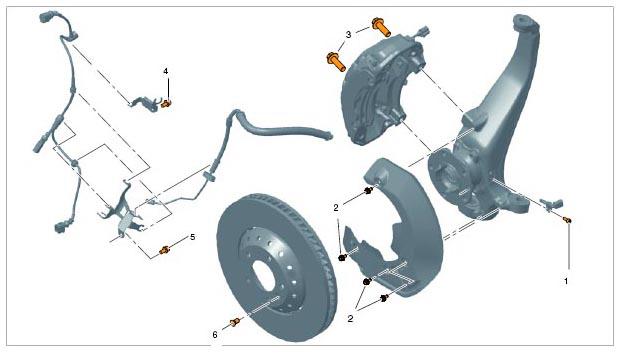

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| No. 1: Threaded connection securing speed sensor to wheel carrier | M6 x 16 thread | Tightening torque | 8 Nm (6 ftlb.) | ||
| No. 2: Threaded connection securing brake cover plate to wheel carrier | M6 x 12 thread | Tightening torque | 8 Nm (6 ftlb.) | ||
| No. 3: Threaded connection securing brake calliper to wheel carrier | M14 x 1.5 x 115 thread (always replace screws and lock nuts after removal) | Tightening torque | 140 Nm (104 ftlb.) | ||
| No. 3: Threaded connection securing brake calliper to wheel carrier 19" and PCCB | M14 x 1.5 x 135 thread (always replace screws and lock nuts after removal) | Tightening torque | 140 Nm (104 ftlb.) | ||
| No. 4: Threaded connection securing brake hose bracket to wheel carrier | M6 x 12 thread | Tightening torque | 9 Nm (6.5 ftlb.) | ||
| No. 5: Threaded connection securing cable holder to wheel carrier | M8 x 14 thread | Tightening torque | 20 Nm (15 ftlb.) | ||
| No. 6: Threaded connection securing brake disc to wheel hub | M12 x 1.5 thread | Tightening torque | 15 Nm (11 ftlb.) | ||
| Wheel bearing to wheel carrier | M12 x 1.25 thread (always replace screws and lock nuts after removal) | Tightening torque | 80 Nm (59 ftlb.) | +120° |
