Spring Strut
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

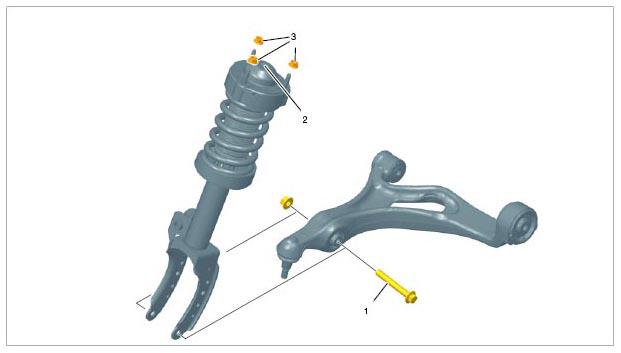

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| No. 1: Threaded connection securing spring strut to trailing arm | M14 x 1.5 thread | Tightening torque | 150 Nm (111 ftlb.) | +90° | |
| No. 2: Threaded connection securing spring-strut mount to piston rod | M12 x 1.5 thread | Tightening torque | 60 Nm (44 ftlb.) | +/-5 Nm (+/- 3.5 ftlb.) | |
| No. 2: Threaded connection securing spring-strut mount to piston rod (PASM damper) | M12 x 1.5 thread | Tightening torque | 70 Nm (52 ftlb.) | +/-5 Nm (+/- 3.5 ftlb.) | |
| No. 3: Threaded connection securing spring strut to body | M10 thread | Tightening torque | 60 Nm (44 ftlb.) | ||
| Threaded connection securing air-guide element to spring strut | Tightening torque | 10 Nm (7.5 ftlb.) |
