Drive Shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
No. 1: Threaded connection securing drive shaft to front axle transmission flange M10 thread Tightening torque 50 Nm (37 ftlb.) +90°
No. 1: Threaded connection securing drive shaft to front axle transmission flange M8 thread Tightening torque 20 Nm (15 ftlb.) +90°
No. 2: Threaded connection securing drive shaft to wheel hub M24 x 1.5 thread (always replace screws and lock nuts after removal); grease friction surface of the nut with aluminum paste (do not put grease on the thread) Tightening torque 460 Nm (340 ftlb.)

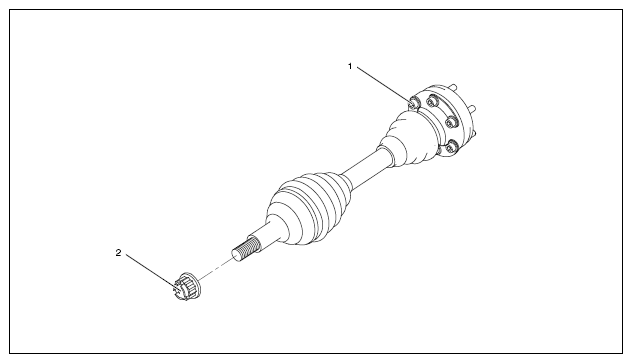

Fig 1: Identifying Drive Shaft
G09934985Courtesy of PORSCHE CARS NORTH AMERICA, INC.
