Anti-Roll Bar/Suspension/Stabilizer
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

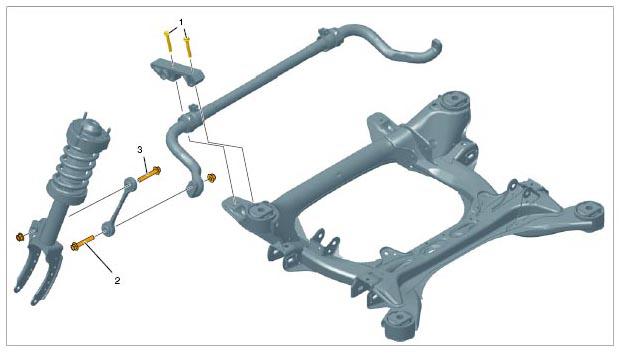

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| No. 1: Threaded connection securing anti-roll bar to suspension subframe | M10 x 62 thread | Tightening torque | 60 Nm (44 ftlb.) | ||
| No. 2: Threaded connection securing anti-roll bar to suspension/stabilizer (connecting link) | M12 x 1.5 thread | Tightening torque | 110 Nm (81.5 ftlb.) | ||
| Threaded connection securing anti-roll bar to anti-roll-bar mount (hose clamp) | Tightening torque | 12 Nm (9 ftlb.) | |||
| No. 3: Threaded connection securing suspension/stabilizer (connecting link) to spring strut | M12 x 1.5 thread | Tightening torque | 110 Nm (81.5 ftlb.) |
