Brake Master Cylinder/Brake Booster
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

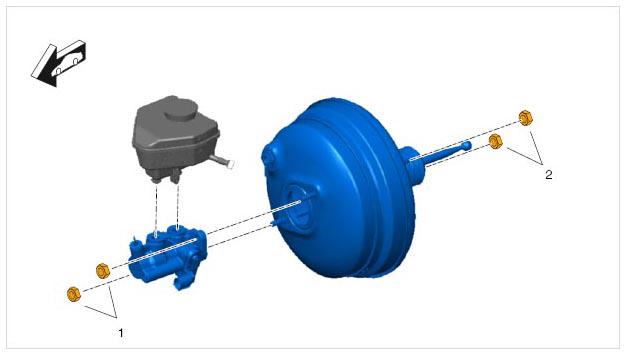

| No. 1: Brake master cylinder to brake booster | M8 thread | Tightening torque | 23 Nm (17 ftlb.) | +/-2 Nm (+/- 1.5 ftlb.) | |
| No. 2: Brake booster to pedals | M8 thread | Tightening torque | 26 Nm (19 ftlb.) | +/-3 Nm (+/- 2 ftlb.) | |
| Brake pressure pipe to brake master cylinder | Tightening torque | 18 Nm (13 ftlb.) | +/-2 Nm (+/- 1.5 ftlb.) | ||
| Brake pressure pipe to brake hose, distributor, brake calliper | M10/M12 thread | Tightening torque | 14 Nm (10.5 ftlb.) | +/-1 Nm (+/- 0.5 ftlb.) |
