Adjusting Headlights

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The following basic conditions must be ensured when adjusting the main headlight:

Vehicle and headlight aiming device must be standing on a level surface.
The vehicle must not be loaded and the tire pressure must comply with the specified values.
Do not turn the steering.
Headlight adjustment is performed with the ignition on.

Position headlight aiming device -1- and align it with the center axis -2- of the dipped beam headlight. Length 945 mm +/-10 mm

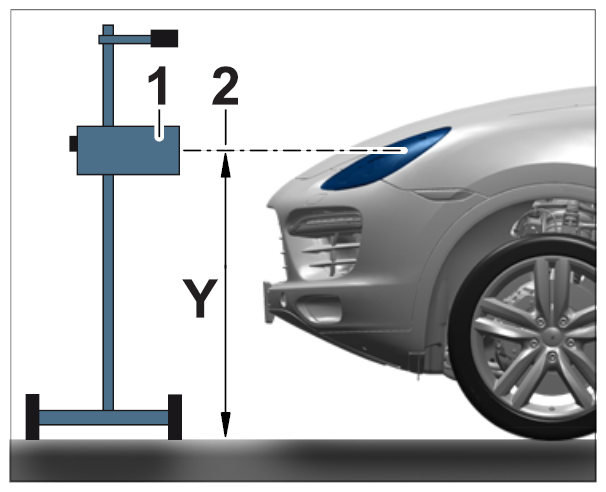

Fig 1: Positioning Aiming Device
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Switch on ignition.
Adjust headlights.
1. 3.1. Lateral adjustment: Adjust salient point of the light/dark limit to center height adjustment position using adjusting screw -1- .
2. 3.2. Height adjustment: Adjust light/dark limit of vehicle using adjusting screw -2- . → Adjustment value: - 1 %

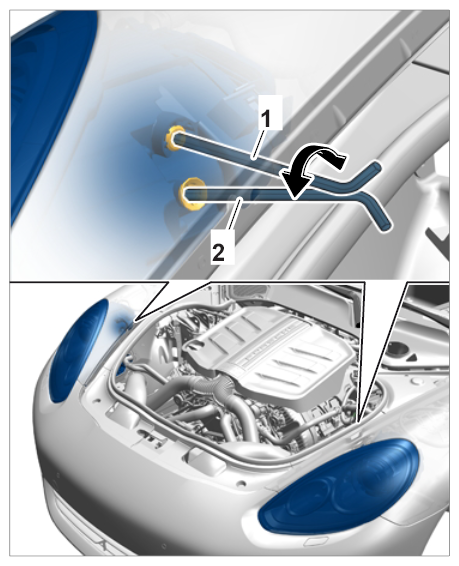

  Fig 2: Adjusting Screws - Shown On Panamera
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

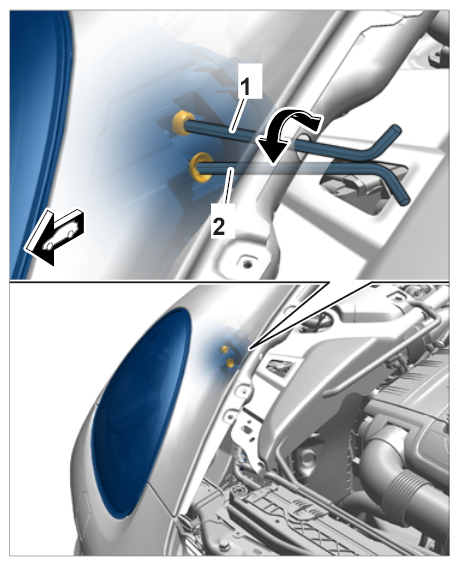

  Fig 3: Adjusting Screws - Shown On Panamera
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

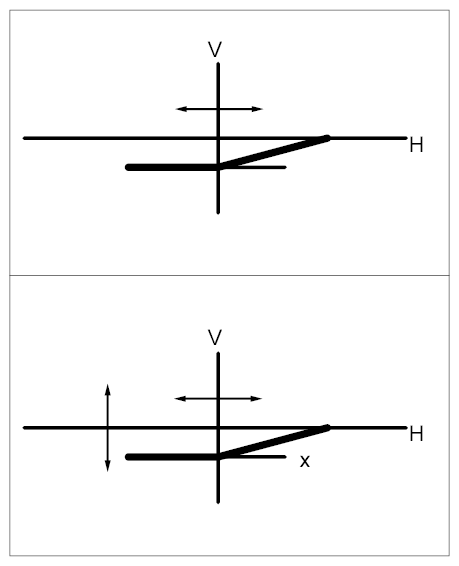

  Fig 4: Adjusting Headlights
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
In the case of Xenon headlights and LED headlights, the ignition must be switched off and back on after the adjustment has been made with the lights switched on.
Then check the adjustment again.
