Removing Tailgate Trim Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

Remove trim panel for center window frame.

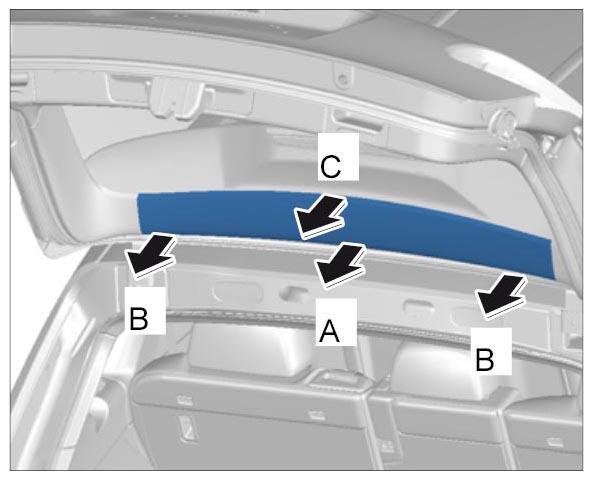

Fig 1: Removing Centre Window Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Carefully unclip center clip -A- using a suitable tool.
2. 1.2. Carefully unclip outer clips -B- using a suitable tool.
3. 1.3. Remove center window trim panel in direction of arrow -C- .
Remove trim panels for window frame at the side.
1. 2.1. Carefully unclip the clips -1 to 4- one after the other in direction of arrow using a suitable tool.

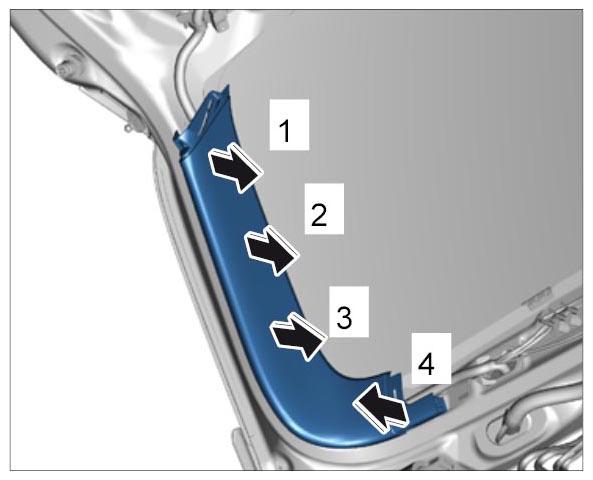

  Fig 2: Removing Side Trim Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Remove trim panels for window frame at the side.
