Removing Loudspeaker Trim Panel At The Left And Right
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.
Information
- Some of the repair illustrations show only one side of the vehicle .
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

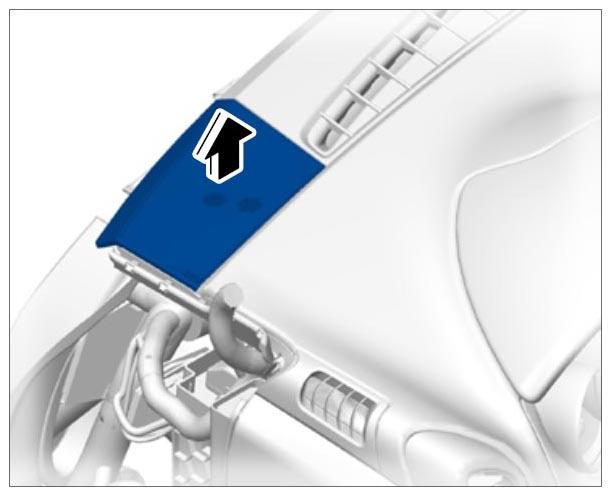

- Unclip loudspeaker trim panel from the dashboard using a plastic wedge -arrow- .
