Removing Loudspeaker Trim Panel At The Centre

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

Unclip rear part of loudspeaker trim panel -1- from the dashboard -2- (-A- ), then unclip the other locking lugs.

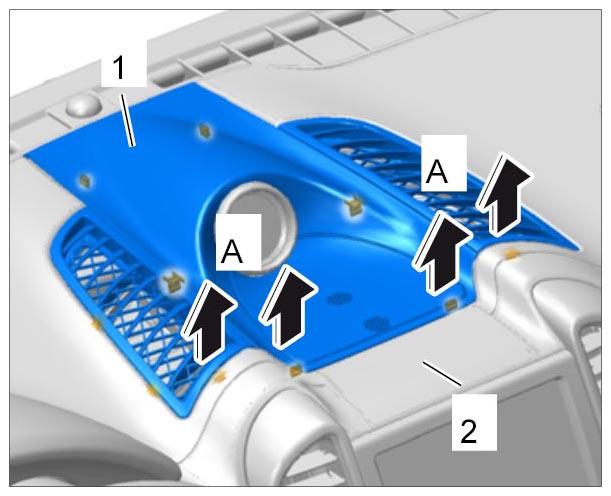

Fig 1: Removing Loudspeaker Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift loudspeaker trim panel -1- up slightly.
Release and disconnect electric plug connection on the compass -arrow- .

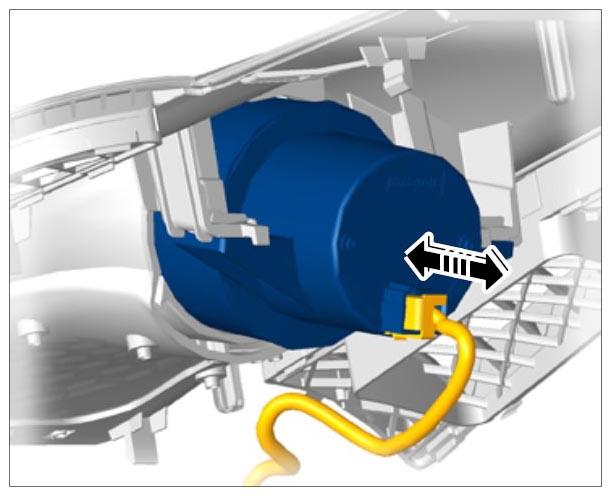

Fig 2: Disconnecting Electric Plug Connection On Compass
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
