Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

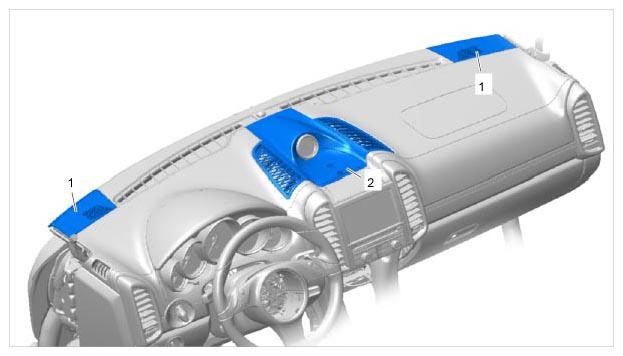

Fig 1: Identifying Loudspeaker Trim Panel Installation Position
G09940802Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loudspeaker trim panel at the left and right
  2. Loudspeaker trim panel at the center
