Removing Trim Panel For Rear Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate (rear lid).
  2. Remove lower part of rear trim panel.

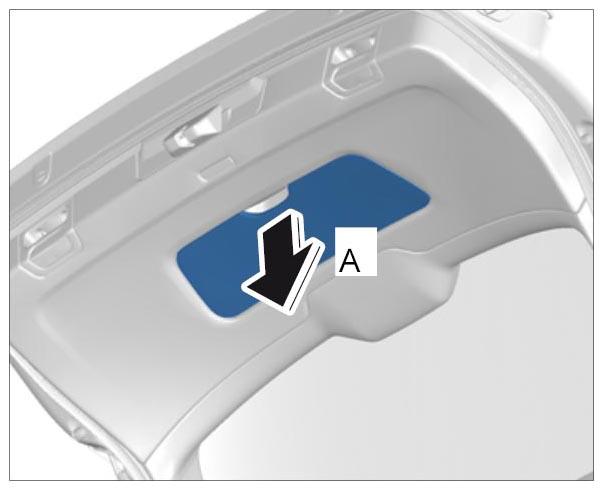

    1. 2.1. Open lid of warning triangle storage compartment -A-  .
      Fig 1: Opening Warning Triangle Lid
      G09940794Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 2.2. Remove warning triangle.

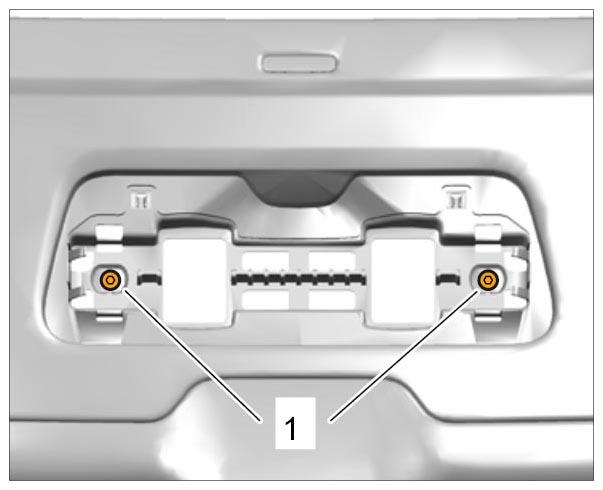

    3. 2.3. Unscrew fastening screws -1-  under the loop for securing the warning triangle.
      Fig 2: Identifying Mounting Screws Of Warning Triangle
      G09940795Courtesy of PORSCHE CARS NORTH AMERICA, INC.

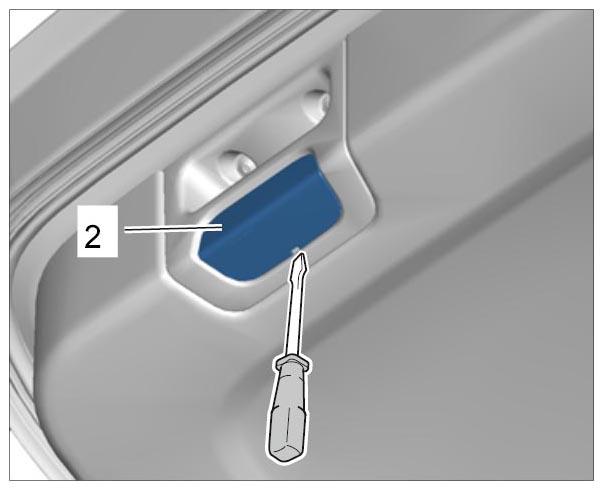

    4. 2.4. Unclip two luggage compartment lamps -1-  using a screwdriver.
      Fig 3: Removing Luggage Compartment Lamps
      G09940796Courtesy of PORSCHE CARS NORTH AMERICA, INC.

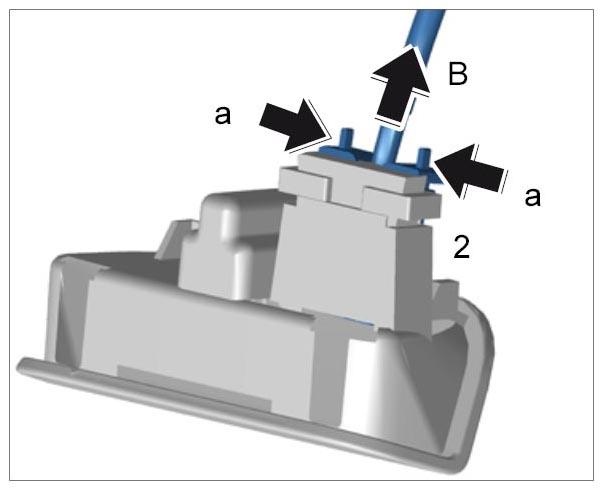

    5. 2.5. Release electric plug connection for luggage compartment lamps -2-  at the side of the connector -a-  and disconnect it -B-  .
      Fig 4: Releasing Electric Plug Connection For Luggage Compartment Lamp
      G09940797Courtesy of PORSCHE CARS NORTH AMERICA, INC.

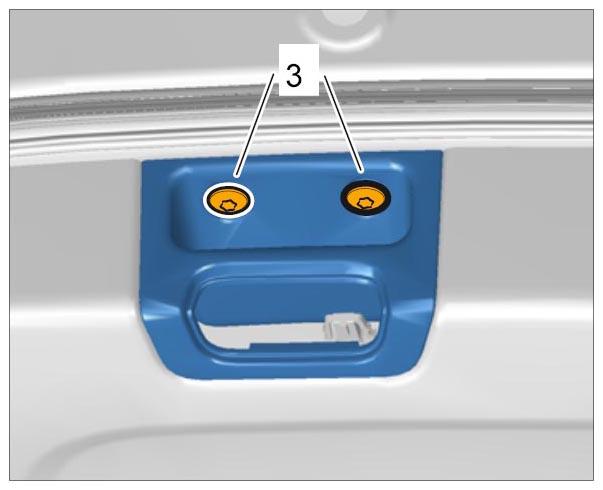

    6. 2.6. Unscrew fastening screws -3-  in the two finger plates.
      Fig 5: Identifying Screws In Finger Plates
      G09940798Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    7. 2.7. Only with power tailgate closing facility:

      Unclip switch for power tailgate closing. To do this, grasp the luggage compartment lamp through the opening and press the switch out from the rear.

    8. 2.8. Only with power tailgate closing facility:

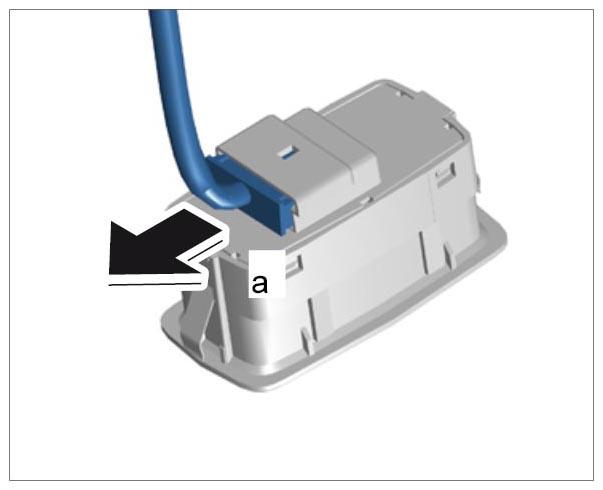

      Disconnect electric plug connection -a-  .

      Fig 6: Disconnecting Electric Plug Connection
      G09940799Courtesy of PORSCHE CARS NORTH AMERICA, INC.

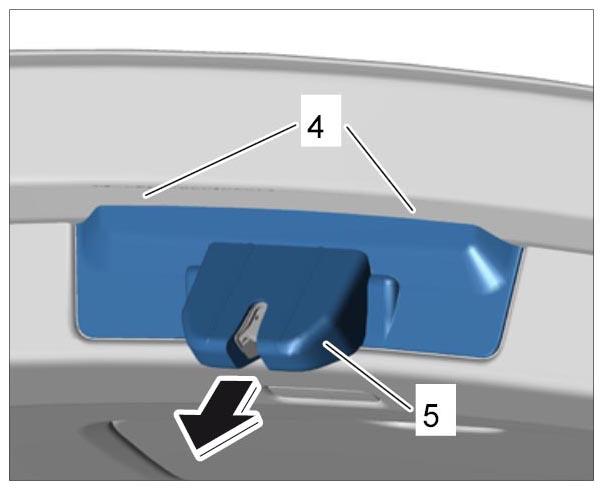

    9. 2.9. Unclip the clips -4-  for the lock cover -5-  using a plastic wedge and pull them off in direction of arrow.
      Fig 7: Removing Lock Cover
      G09940800Courtesy of PORSCHE CARS NORTH AMERICA, INC.

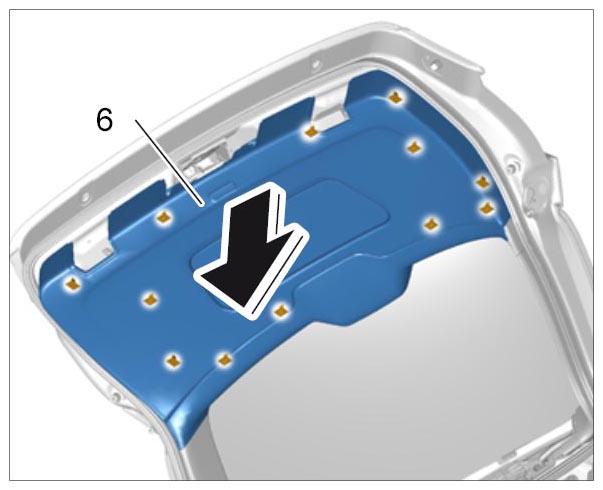

    10. 2.10. Carefully unclip the clips for the lower part of the trim panel -6-  at the marked areas using a suitable tool.
      Fig 8: Removing Retaining Clips From Lower Part Of Tailgate Trim Panel
      G09940801Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    11. 2.11. Remove lower part of trim panel by pulling it downwards.
