Installing Roof Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

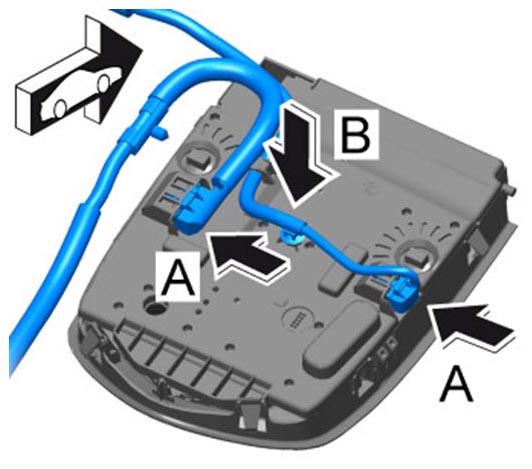

Secure wire harness.

Fig 1: Securing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Connect plug connections -A- until they engage securely.
2. 1.2. Clip in wire harness -B- .

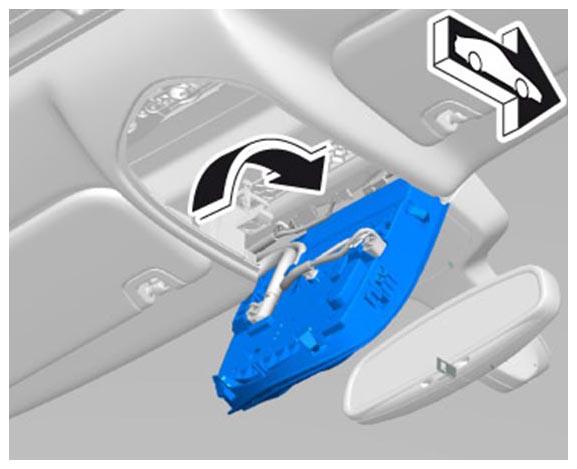

Engage headliner at the two retaining pins.

Fig 2: Engaging Headliner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

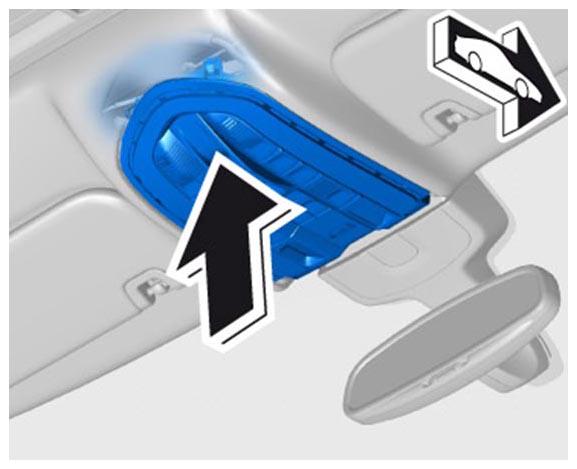

Swivel in headliner and clip it into place.

Fig 3: Clipping Headliner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

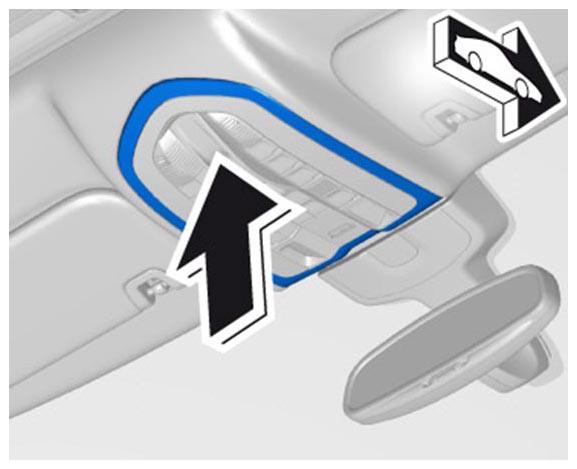

Clip in trim for headliner.

Fig 4: Clipping Trim For Headliner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
