Removing Rear Side Trim Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

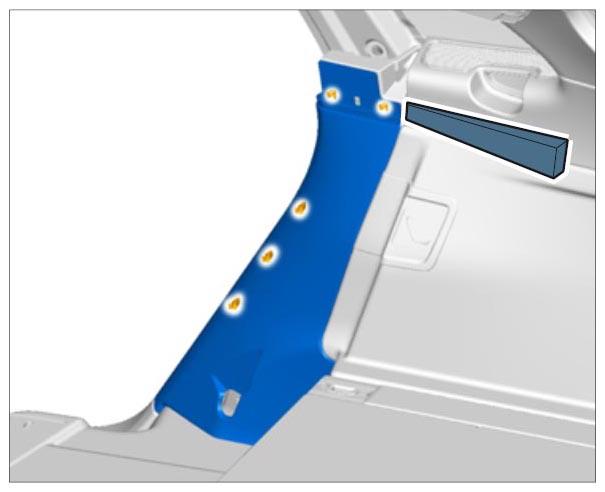

Loosen clips -circles- for the side trim panel through the door opening.

Fig 1: Detaching Rear Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

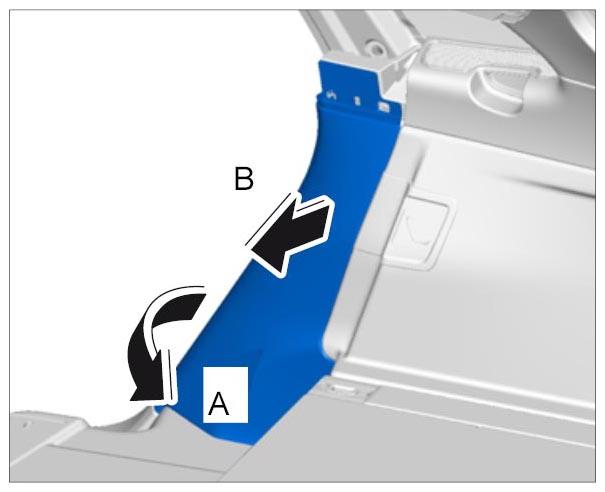

Swivel trim panel inwards at the door opening -A- and pull it forward -B- .

Fig 2: Removing Rear Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
