Installing Rear Side Trim Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check that all fixing clips are positioned fully and correctly.

Check that the fixing clips are not bent or broken.

Replace damaged or missing clips with new ones.

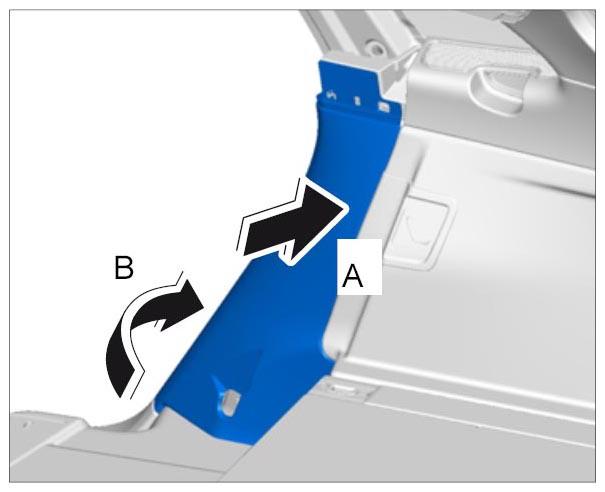

Guide rear side trim panel into the locking mechanism -A- and clip it in at the door opening -B- .

Fig 1: Fitting Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

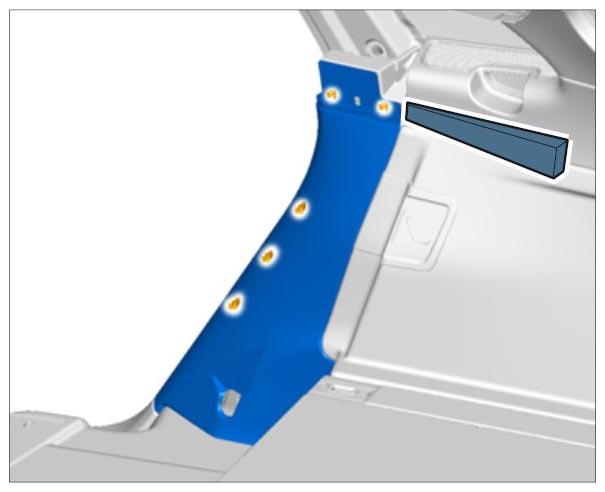

Clip in clips -circles- for side trim panel, starting at the bottom.

Fig 2: Installing Rear Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
