Technical Values

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for door panel Item 2 Tightening torque 4.5 Nm (3.5 ftlb.)
G09940749

Loosening door panel
Fastening screw for door panel, bottom Item 3 Tightening torque 2 Nm (1.5 ftlb.)

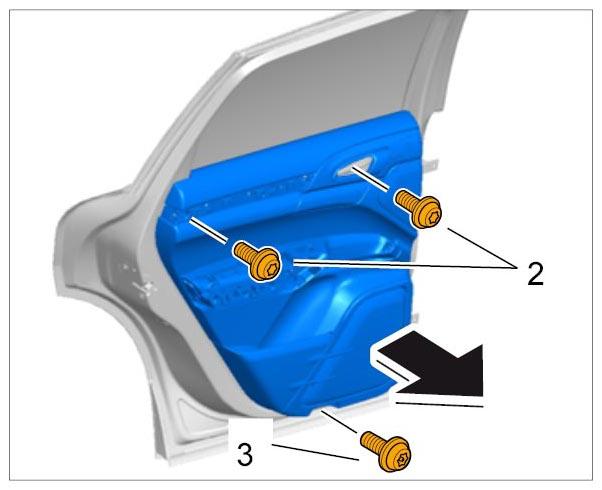

G09940750

Loosening door panel
