Removing D-Pillar Trim Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Risk of damage to electric wires and head airbag.

→ When unclipping the trim panel using a tool, make sure not to damage the electric wires lying behind it and the head airbag.

Unclip D-pillar trim panel -circles- from the D-pillar at the marked areas.
1. 1.1. Lift trim panel slightly at position -A- .
2. 1.2. Lever out fastening clips using a plastic wedge.

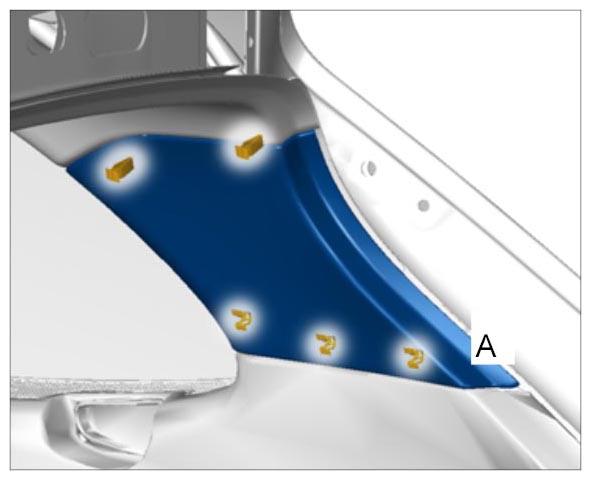

  Fig 1: Identifying D-Pillar Trim Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen expansion rivet and remove rebound strap on the body.
