Removing C-Pillar Trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide rear seat bench forward.
  2. Unscrew fastening screw for the seat belt -1-.

    Tools: Open-end/ring wrench insert Nr.98-1 Pos.1  and special inserts Nr.170

    Fig 1: Loosening Seat Belt
    G09940741Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip C-pillar trim panel from the C-pillar at the marked areas -circles-  . To do this, raise the bottom of the trim panel -A-  slightly and lever out the fastening clips.

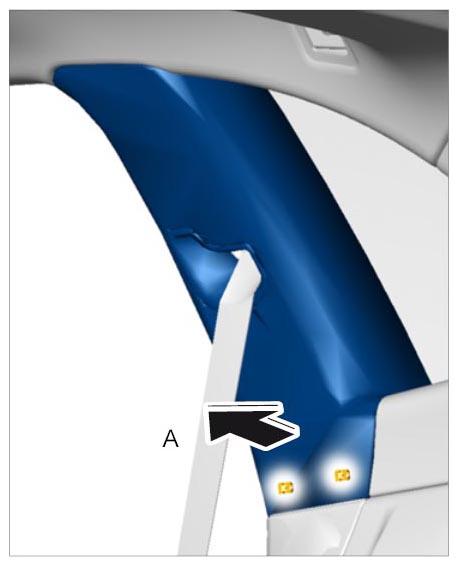

    Fig 2: Unclipping C-Pillar Trim Panel
    G09940742Courtesy of PORSCHE CARS NORTH AMERICA, INC.
