Removing B-Pillar Trim Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

  1. Unclip lower B-pillar trim panel -1-  at the sides from the door seal -A-  .

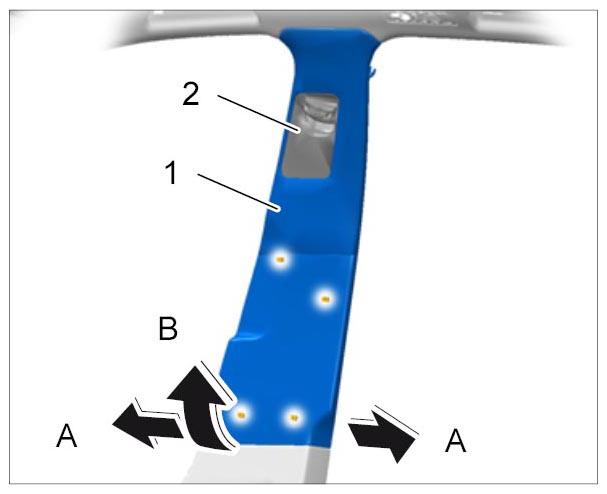

    Fig 1: Removing B-Pillar Trim Panel
    G09940737Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip clips -circles-  from the bottom upwards and swivel out trim panel -B-  .

    Only complete the following steps for vehicles with air conditioning in the rear of the vehicle  .

  3. Release and disconnect electric plug connection for light for air vents.
  4. Remove B-pillar trim panel -1-  in a downward direction.
  5. Guide seat belt through the belt adjustment guide -2-  .
