Removing Rear Inner Door Handle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip the large cover -1-  using a plastic wedge and remove it by pulling it inwards.
    Fig 1: Unclipping Large Cover
    G09940727Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip the small cover -2-  using a plastic wedge and remove it by pulling it inwards.
    Fig 2: Unclipping Small Cover
    G09940728Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew fastening screws -3-  for inner door handle -4-  .
    Fig 3: Removing Handle
    G09940729Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove inner door handle -4-  by pulling it inwards.


  1. Unclip the large cover -1-  using a plastic wedge and remove it by pulling it inwards.

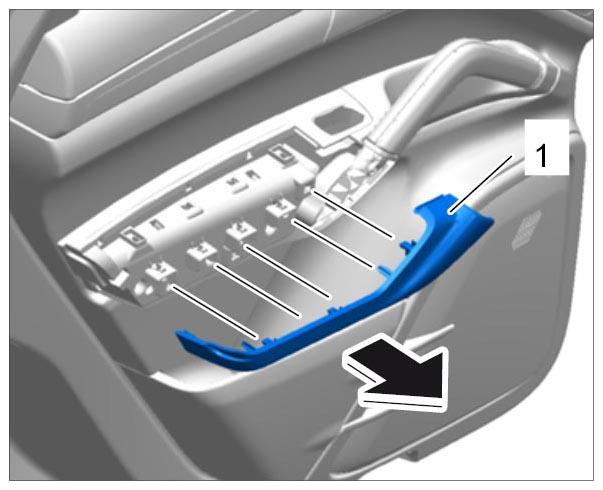

    Fig 1: Unclipping Large Cover
    G09940734Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip the small cover -2-  using a plastic wedge and remove it by pulling it inwards.

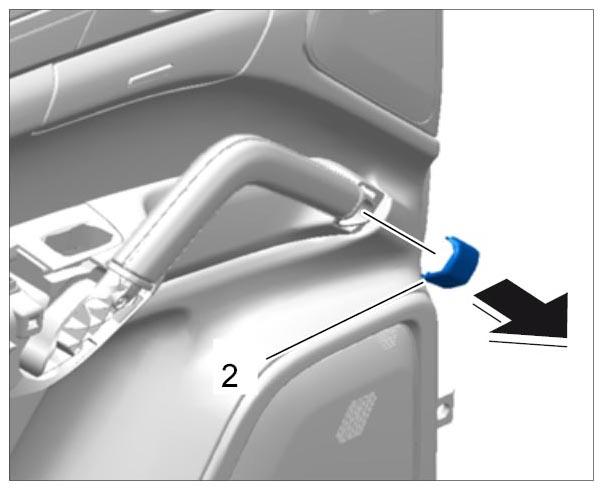

    Fig 2: Unclipping Small Cover
    G09940735Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew fastening screws -3-  for inner door handle -4-  .

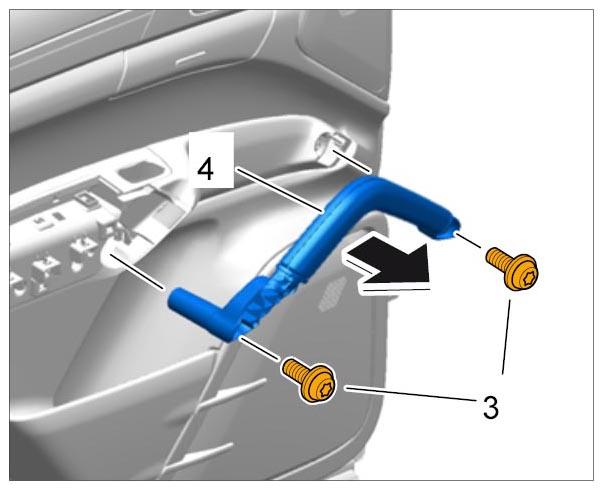

    Fig 3: Removing Handle
    G09940736Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove inner door handle -4-  by pulling it inwards.
