Removing Strip For Rear Door Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

  1. Carefully unclip strip for door panel using a plastic wedge.

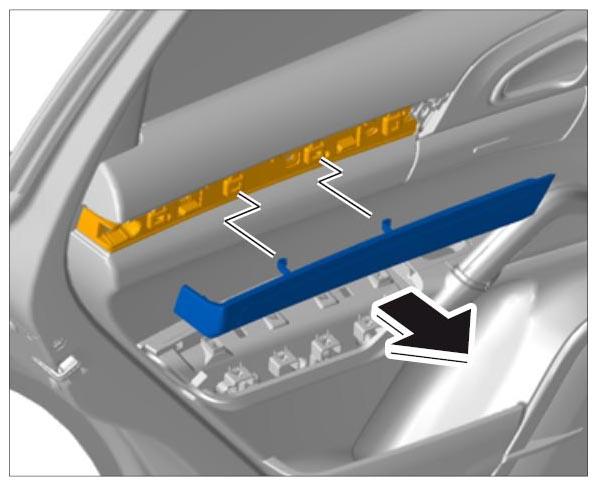

    Fig 1: Unclipping Strip
    G09940726Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove strip for door panel.
