Removing Dashboard Molding On Driver's Side (Right)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

  1. Carefully unclip dashboard molding on driver's side (right) -2-  .

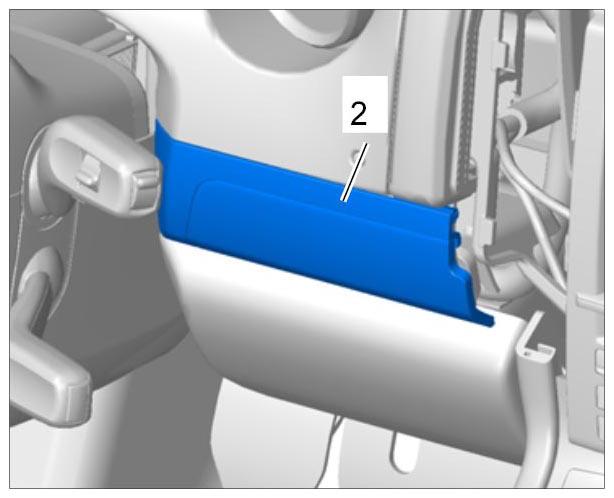

    Fig 1: Removing Dashboard Molding On Driver Side (Right)
    G09940710Courtesy of PORSCHE CARS NORTH AMERICA, INC.
