Removing A-Pillar Trim Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

CAUTION:

Risk of damage to electric wires and head airbag.

→ When unclipping the trim panel using a tool, make sure not to damage the electric wires lying behind it and the head airbag.

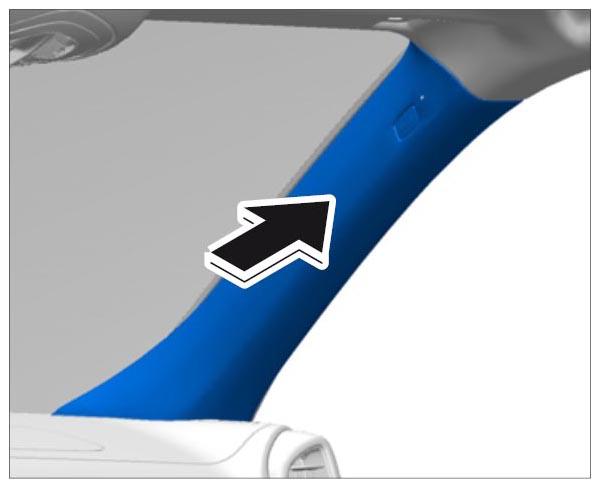

Carefully pull out A-pillar trim panel at the top of the door aperture -arrow- .

Fig 1: Loosening A-Pillar Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

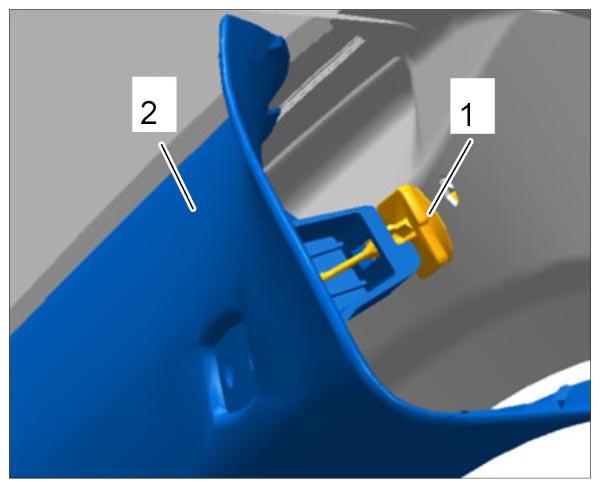

Turn the locking mechanism -1- at the front by 90° using pointed-nose pliers and guide it out at the trim panel -2- .

Fig 2: Identifying Lock Mechanism And Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

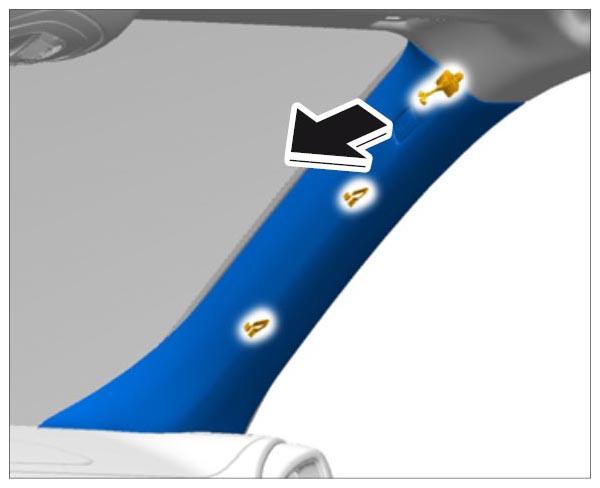

Detach A-pillar trim panel from the locking mechanisms -arrow- .

Fig 3: Loosening Pillar Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off A-pillar trim panel in an upward direction -arrow- .

Fig 4: Removing Pillar Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

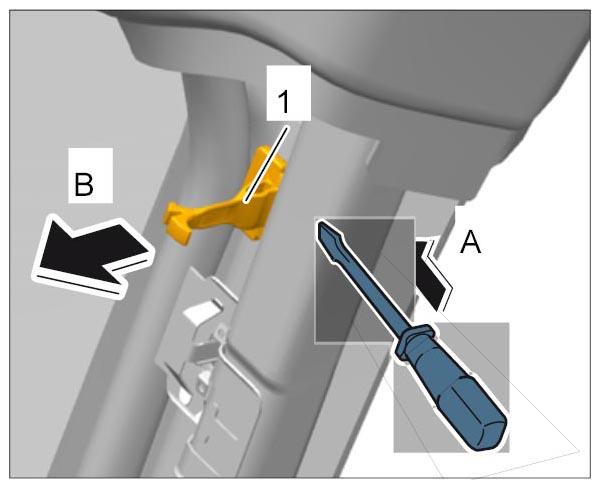

Release upper locking mechanism -1- using a screwdriver -A- and pull it out -B- .

Fig 5: Removing Upper Lock Mechanism For A-Pillar Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
