Installing A-Pillar Trim Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The upper clip -1- of the A-pillar trim must not be reused.

It must always be replaced, even if there is no visible damage.

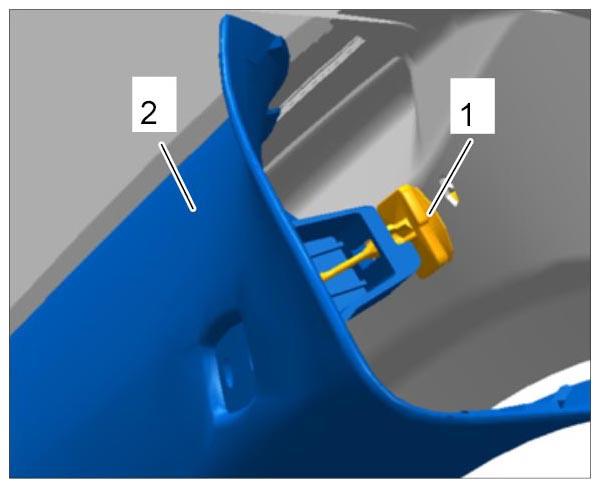

Fig 1: Identifying Upper Clip For Pillar Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Check that all fixing clips are positioned fully and correctly.

Check that the fixing clips are not bent or broken.

Replace damaged or missing clips with new ones.

The A-pillar trim panel is installed in reverse order to removal .
