Removing A-Pillar Trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

CAUTION:

Risk of damage to electric wires and head airbag.

→ When unclipping the trim panel using a tool, make sure not to damage the electric wires lying behind it and the head airbag.

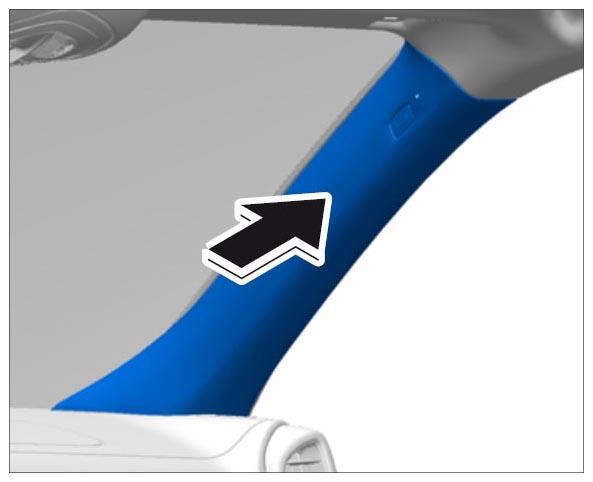

Carefully pull out trim for upper A-pillar at the door aperture -arrow- .

Fig 1: Loosening Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

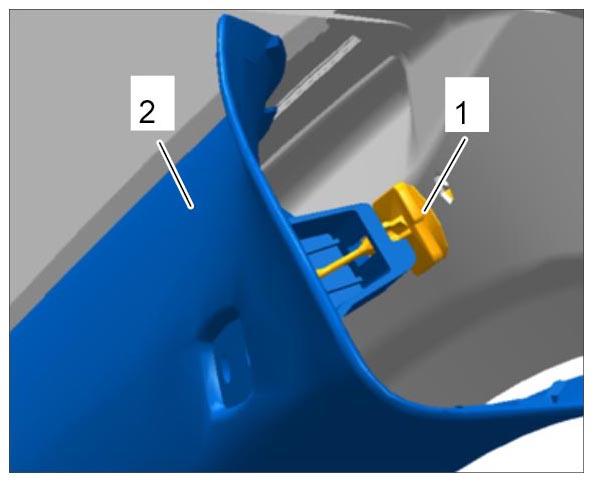

Turn lock -1- through 90° using pointed-nose pliers and pull off trim -2- .

Fig 2: Releasing Lock For Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

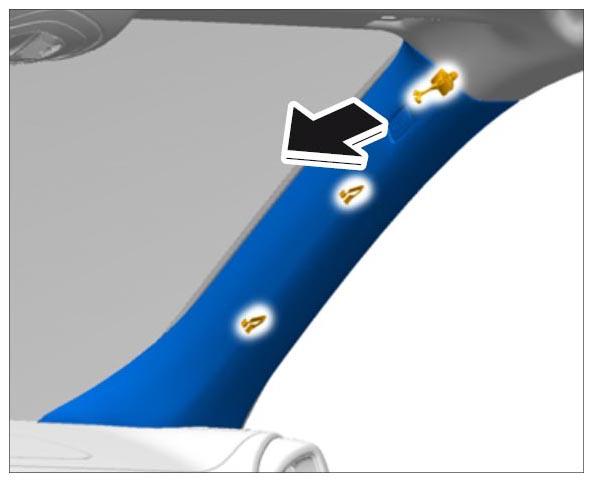

Detach A-pillar trim out of locks -arrow- .

Fig 3: Loosening Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off A-pillar trim in an upward direction -arrow- .

Fig 4: Removing Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The upper clip -1- of the A-pillar trim must not be reused.

It must always be replaced, even if there is no visible damage.

Fig 5: Identifying Upper Clip For Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

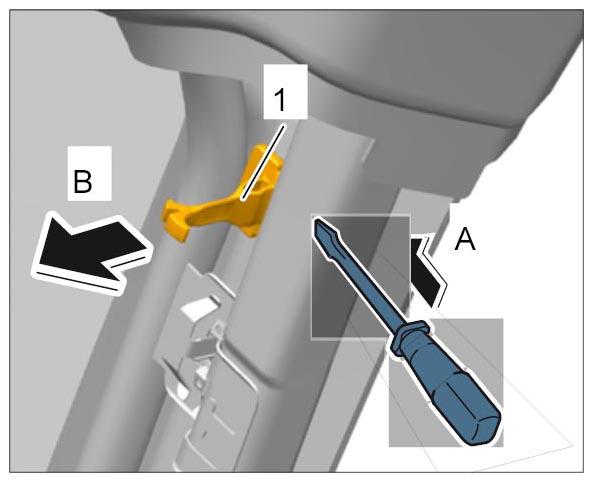

Release upper lock -1- using a screwdriver -A- and pull it off -B- .

Fig 6: Removing Upper Lock For Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
