Removing Centre Floor Covering

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Guide out and lift up the carpet in the rear area -arrow A-  .
  2. Guide out all electric lines -1-  at the carpet.
  3. Remove air guides -2-  .
  4. Pull carpet at the side forward under the center console -arrow B-  .
  5. Pull carpet forward and remove it -arrow C-  .

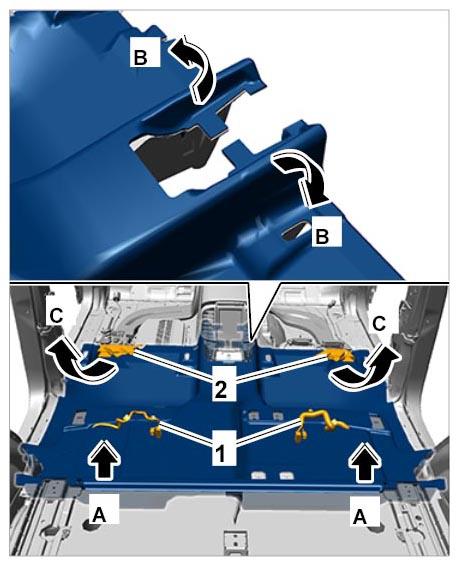

    Fig 1: Removing Centre Floor Cover
    G09940694Courtesy of PORSCHE CARS NORTH AMERICA, INC.
