Removing Carpet On Driver's Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip one fastening plug -1-  on the center console and one press-stud -2-  in the footwell.

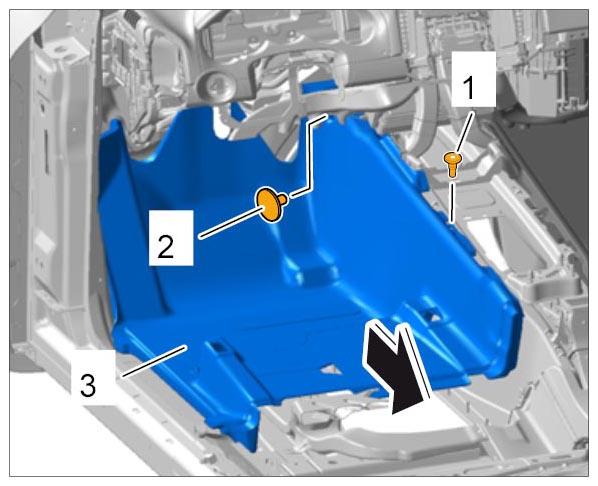

    Fig 1: Removing Carpet On Driver Side
    G09940692Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lift up the carpet -3-  at the rear and remove it by pulling it back -arrow-  .
