Removing Cover For Rear Lock Support

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear lid.
  2. Lift up loadspace floor.
  3. Remove cover for rear lock support -7-  .

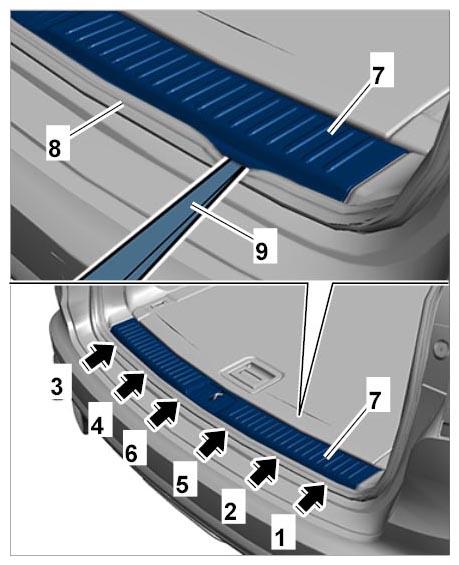

    1. 3.1. Fold over seal -8-  in the retaining clip area and carefully unclip cover for rear lock support -7-  by prising it upwards using a plastic wedge -9-  in the sequence -1 to 6-  .
      Fig 1: Loosening Cover For Rear Lock Support
      G09940680Courtesy of PORSCHE CARS NORTH AMERICA, INC.

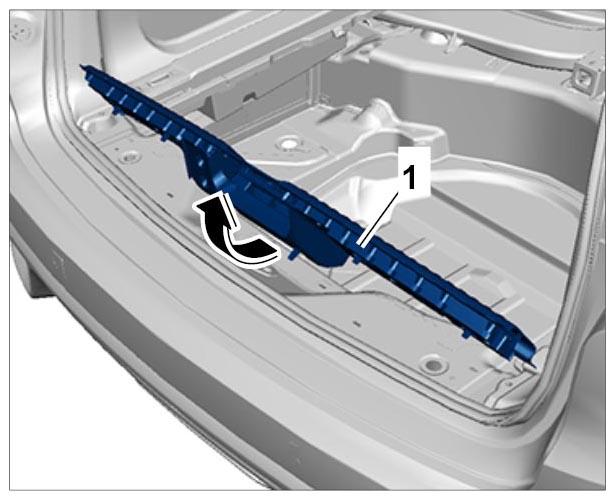

    2. 3.2. Fold up cover for rear lock support -1-  and pull it out between the luggage compartment trim panels.
      Fig 2: Removing Cover For Rear Lock Support
      G09940681Courtesy of PORSCHE CARS NORTH AMERICA, INC.
