Installing Cover For Rear Lock Support

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

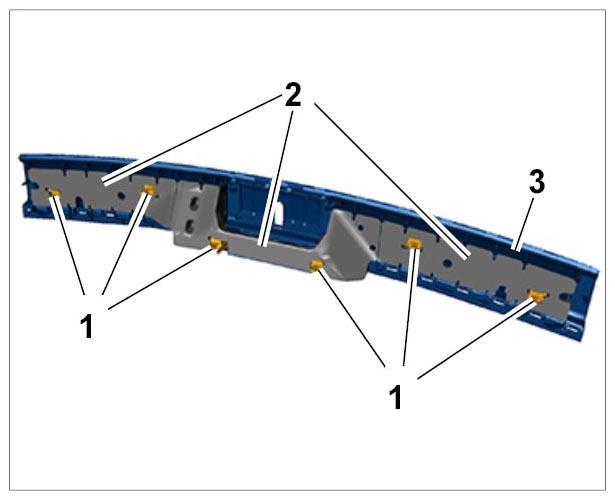

Check retaining clips -1- and sound absorbers -2- for damage and check that they are seated correctly in the cover for the rear lock support -3- .

Fig 1: Identifying Retaining Clips And Sound Absorbers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover for rear lock support -1- .

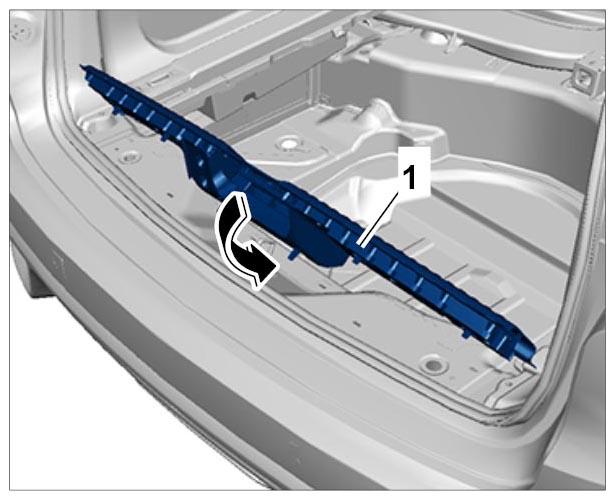

1. 2.1. Position cover for rear lock support -1- between the luggage compartment trim panels and carefully fold it downwards.

  Fig 2: Installing Cover For Rear Lock Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

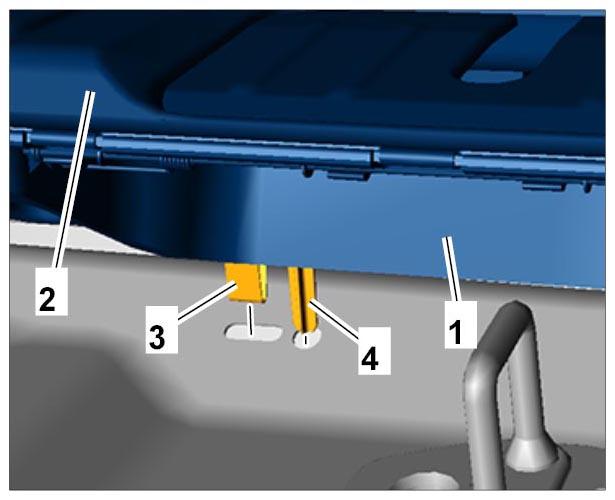

2. 2.2. Check sound absorbers -1- again to make sure they are seated correctly in the cover for the rear lock support -2- .
3. 2.3. Position all retaining clips -3- and guide pins -4- in the appropriate openings on the body, but do not engage them!

  Fig 3: Positioning Retaining Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

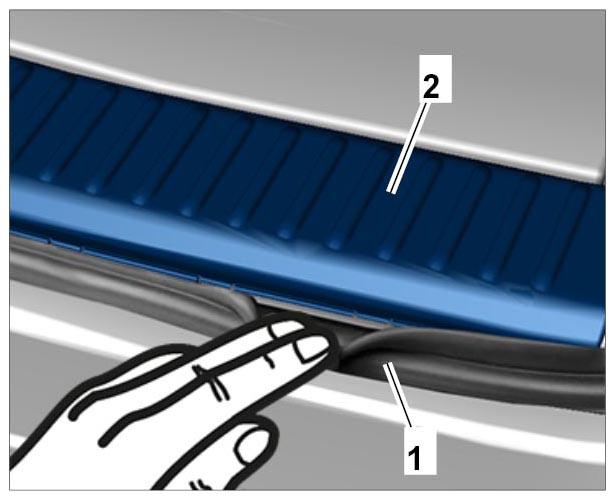

4. 2.4. Fold out sealing lip -1- over the entire length under the cover for the rear lock support -2- .

  Fig 4: Folding Out Sealing Lip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

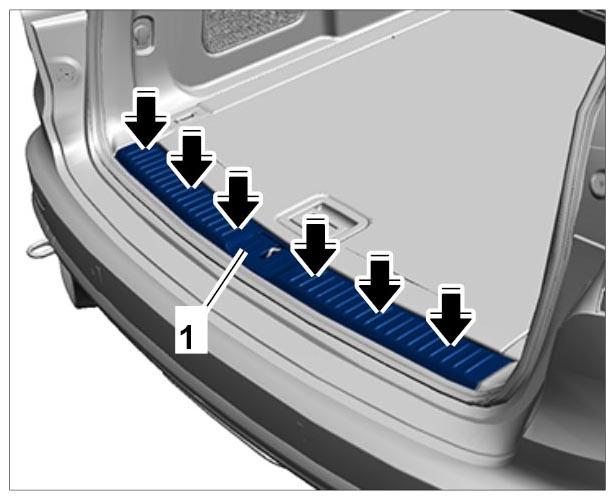

5. 2.5. Press cover for rear lock support -1- downwards -arrows- until the retaining clips engage securely.

  Fig 5: Clipping Cover For Rear Lock Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold down loadspace floor.
Close the rear lid.
