Removing Cover For Rear Lock Support

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press seal for rear lid -2-  away from the lock support cover -1-  .

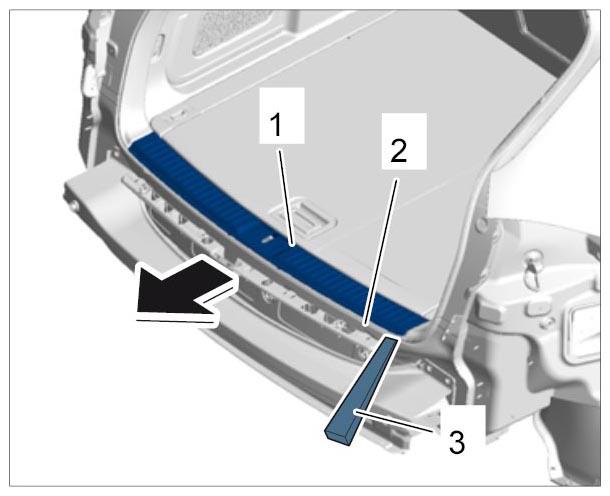

    Fig 1: Removing Lock Support Cover
    G09940689Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip lock support cover -1-  in an upward direction using a plastic wedge -3-  .
  3. Pull the lock support cover out to the rear -arrow-  .
