Removing Cover For Front Lock Support

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front lid.
  2. Pull expansion rivets -1-  out of the cover -2-  .

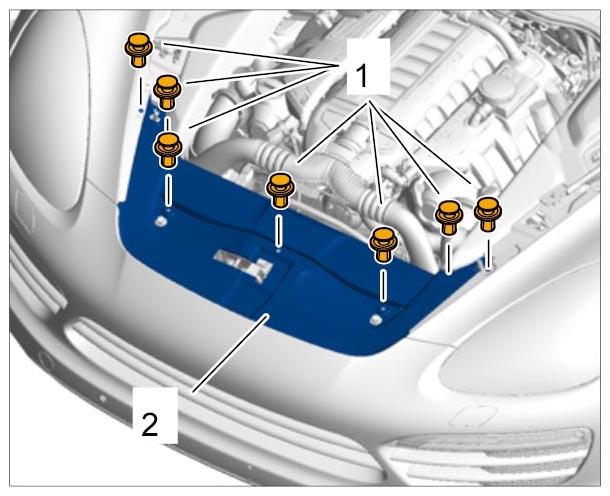

    Fig 1: Identifying Expansion Rivets And Cover
    G09940687Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip cover -2-  in the middle in an upward direction -A-  and swivel it out at one side -B-  .

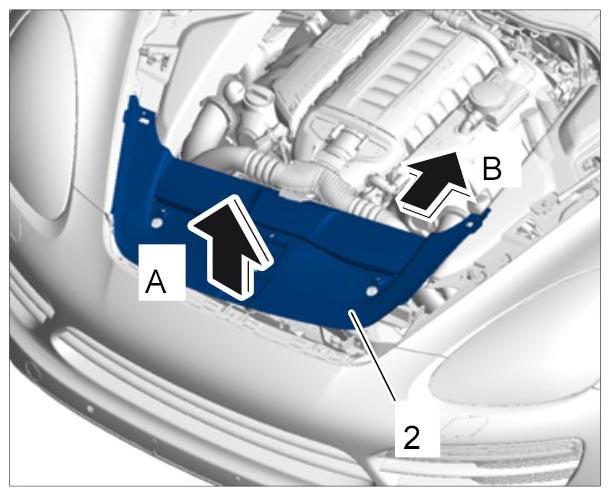

    Fig 2: Removing Cover
    G09940688Courtesy of PORSCHE CARS NORTH AMERICA, INC.
